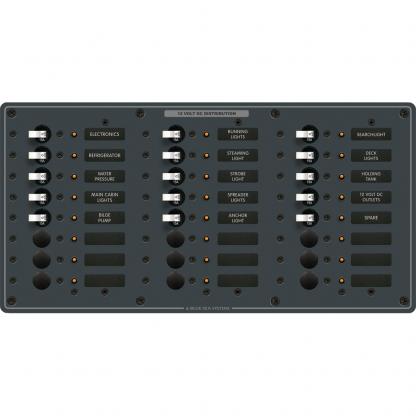

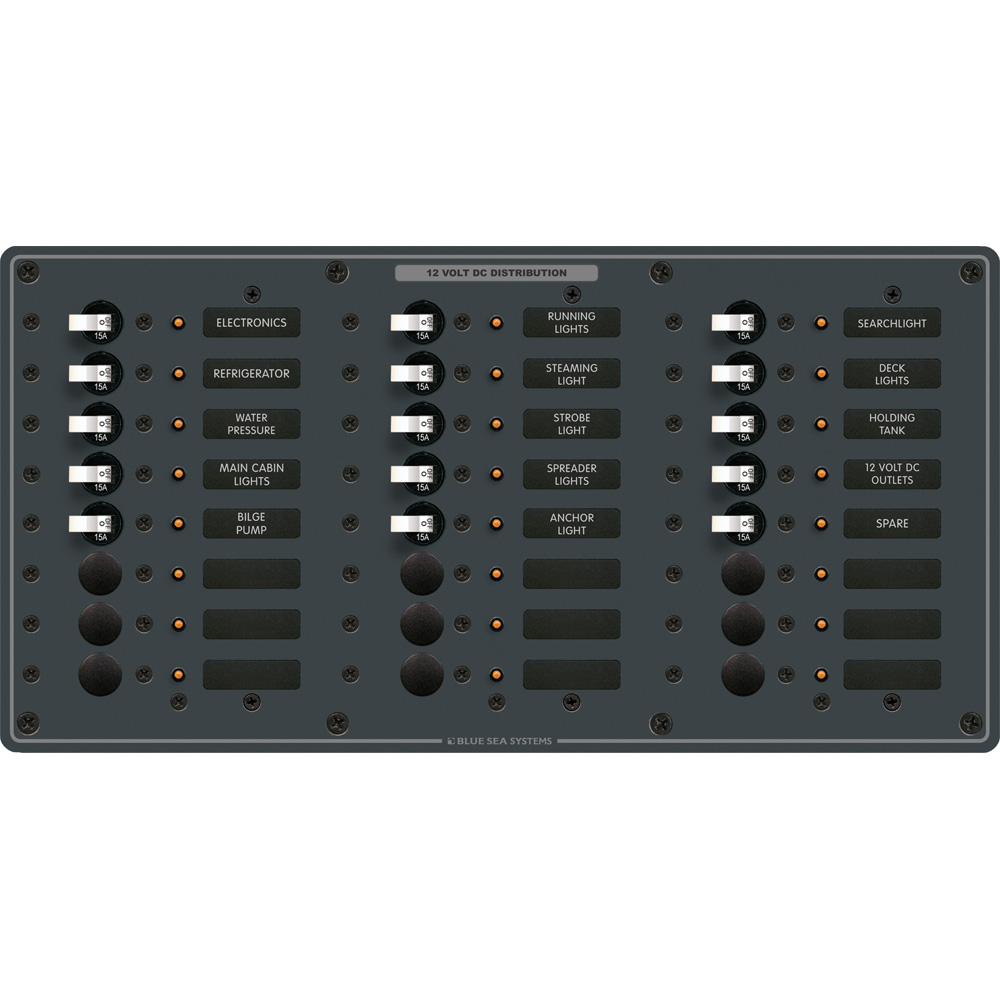

8264 Traditional Metal DC Panel – 24 Positions

Features:

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels – No kit required

• “ON” indicating LEDs installed in all circuit positions

Specifications:

• Positions: 24

• Nominal Voltage: 12 VDC/24 VDC

• Maximum Amperage: 100A per bus

• Height: 7.50″ (190.5 mm)

• Width: 14.75″ (374.65 mm)

• Weight: 7.45lb. (3.38 kg)
