Description

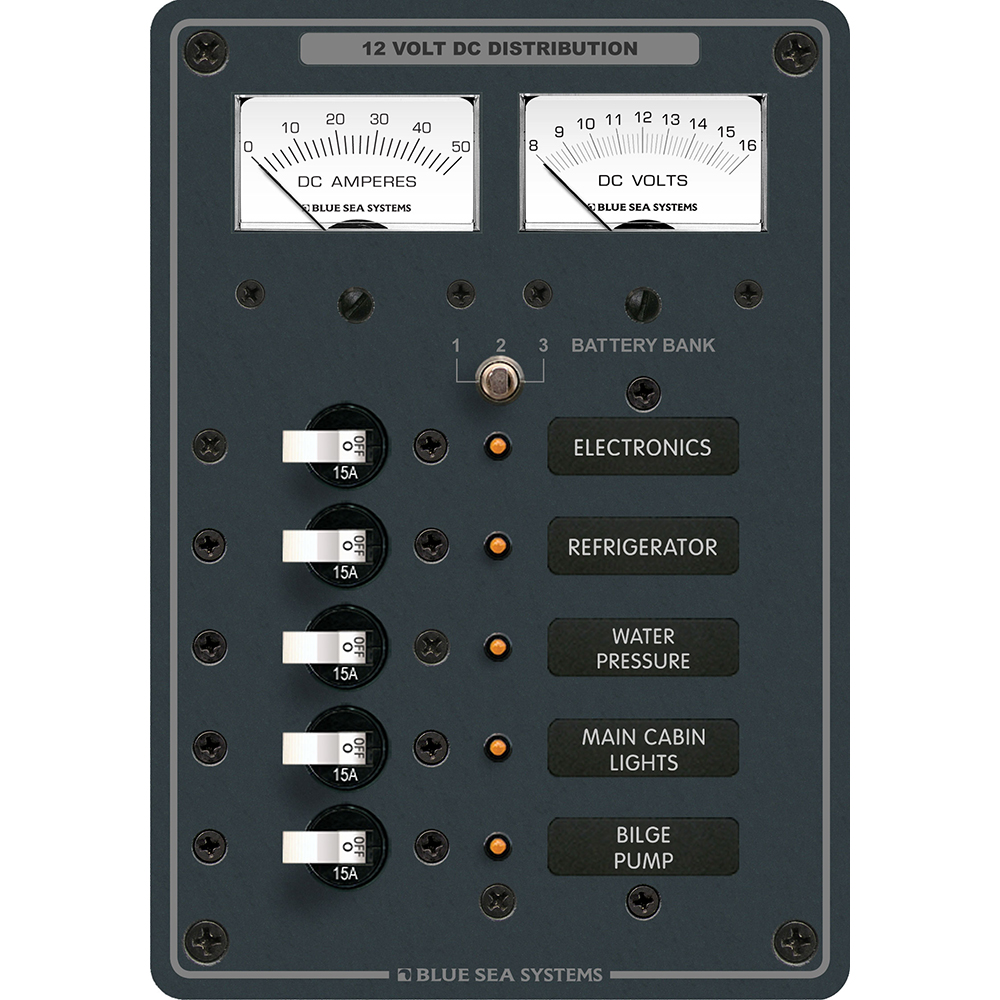

8081 DC 5 Position Toggle Branch Circuit Breaker Panel – White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions

Specifications:

• Positions: 5
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 7.5″
• Width: 5.25″
• Depth: 2.5″
• Weight: 2.25 lbs

Included:

• (5) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
• (1) 8030 Basic DC Panel Label Set – 30 Labels
• (1) 8041 DC Micro Ammeter – 0 to 50A w/ Shunt (Meter)
