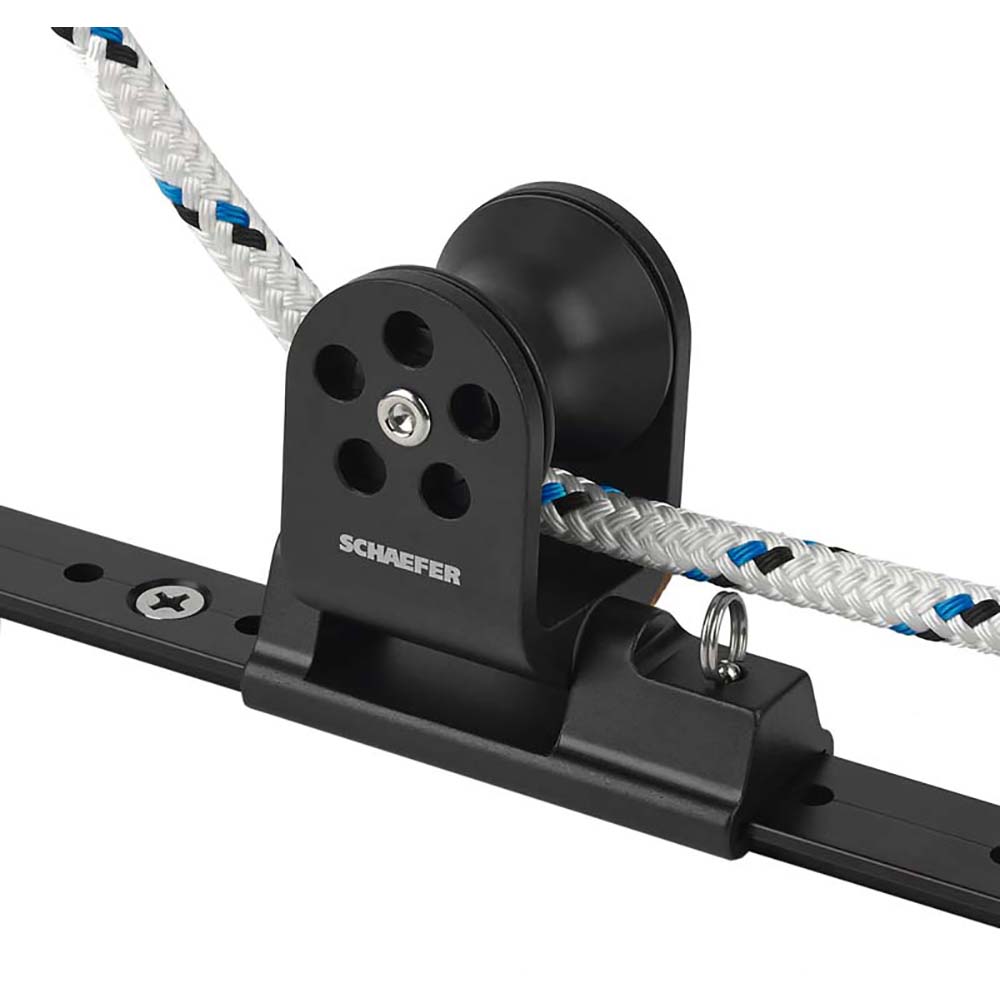

Twin Sheet Lead 25x3MM – Black

32-77 Twin Sheet Lead block. The anodized aluminum body is machined from 6061-T6 aluminum and articulates to ensure a proper lead. Anodized aluminum sheave runs on Nomex™/Teflon™ bearing for a low-friction high strength sheave. Pin stop makes adjustment simple.

Features:

• Track Size 1″ x 1/8″ (25 mm x 3 mm)
• Boat Size Up To LOA 29′
• Disp. 5000 lbs.
• Sail Area 315 sq. ft (8m, 2270 kg, 29 m2)
• Sheave Dia. 1-1/2″ (38 mm)
• Max Line (2) 1/2″ (13 mm)
• L 3-1/2″ (89 mm)
• W 1-11/32″ (34 mm)
• H 3-9/32″ (83 mm)
• Bearing Height 1-29/32″ (49 mm)
• SWL 2500 lbs. (1135 kg)
• Weight 10 oz. (284 g)
