Description

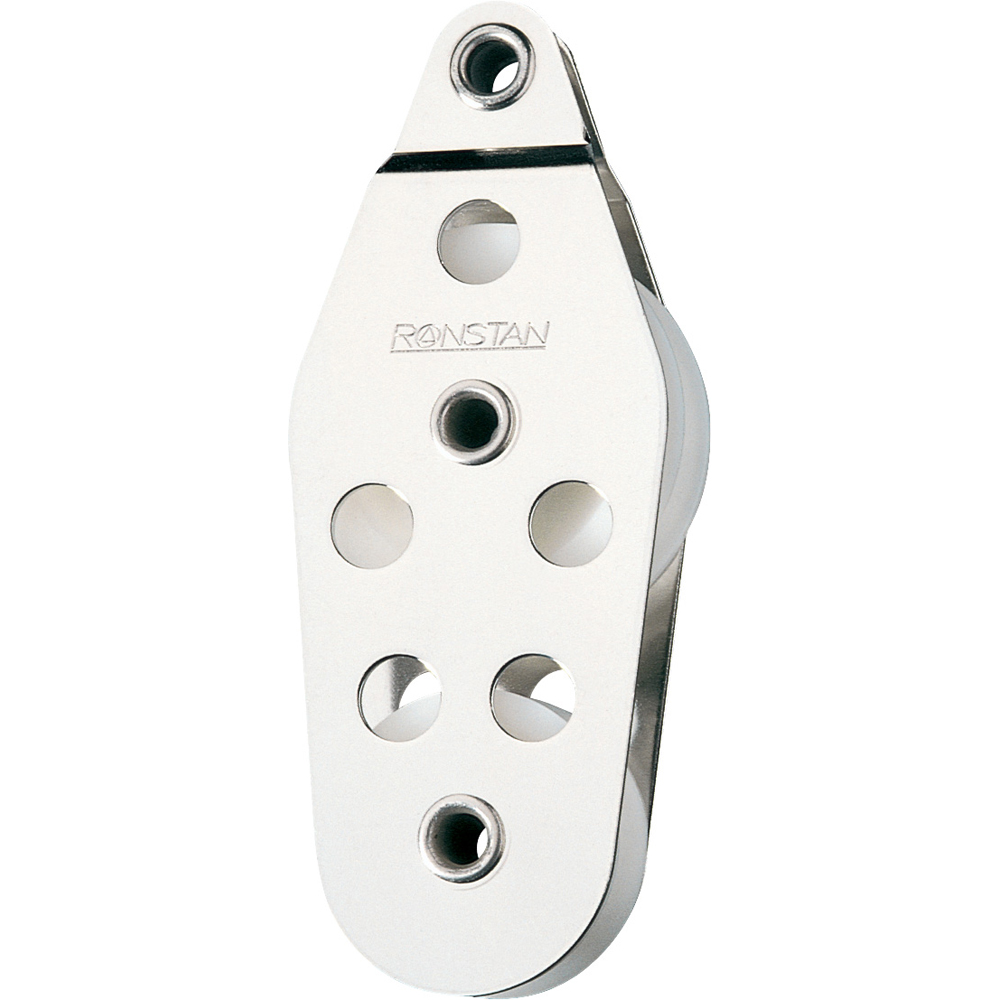

Series 30 Fiddle Block – Narrow with Tube Rivet Head

Features:

• Lightweight durable construction
• Economical
• Maintenance free
• Hollow rivets accept fixing screws, shackles or can be used as a becket for extra purchase
• Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance

Applications:

• Vang, cunningham and trapeze retriever systems on dinghies
• Leech line tackles, bunk adjusters etc on larger yachts

Materials:

• U.V. Stabilized Acetal sheaves
• Grade 316 stainless steel cheeks

Specifications:

Sheave Ø:29mm(1-1/8″)

Max. Rope Ø:8mm(5/16″)

M.W.L.:300kg(660lbs)

B. L.:600kg(1,320lbs)

Weight:50g(1.8oz)
