Description

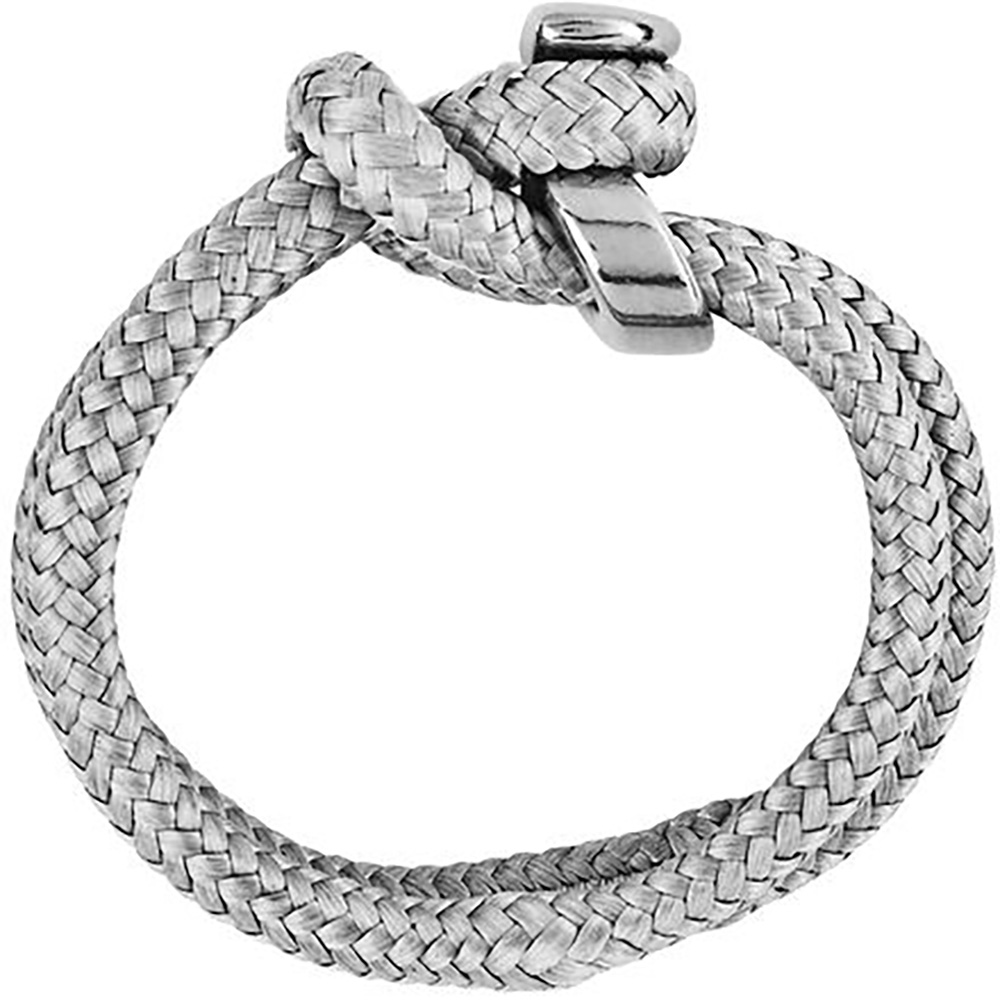

5.0 Soft Shackle – 5mm Diameter – 13/64″ – 90mm Length – 3 35/64″

Features:

• SoftLink is a soft shackle developed by Wichard for recreational sailors looking for performance and ease of use.
• For the same strength, SoftLink is 4 or 5 times lighter than a 316L stainless steel shackle.
• No knowledge of ropework required
• Replaces shackles and snap hooks
• Easy to fit and easy to open
• Remarkably light and strong
• Re-usable
• 3 sizes available

Applications:

• Fastenings
• Replaces shackles and snap hooks

Specifications:

• Materials: 316L stainless steel grade Dyneema SK78

Dimensions:

• Loop diameter: (inch) 13/64″ / (mm) 5
• Loop length: (inch) 3 35/64″ / (mm) 90
• Working load: (lb) 8370 / (kg) 3800
• Breaking load: (lb) 11020 / (kg) 5000
• Weight: (lb) 0.104 / (g) 47

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
