Description

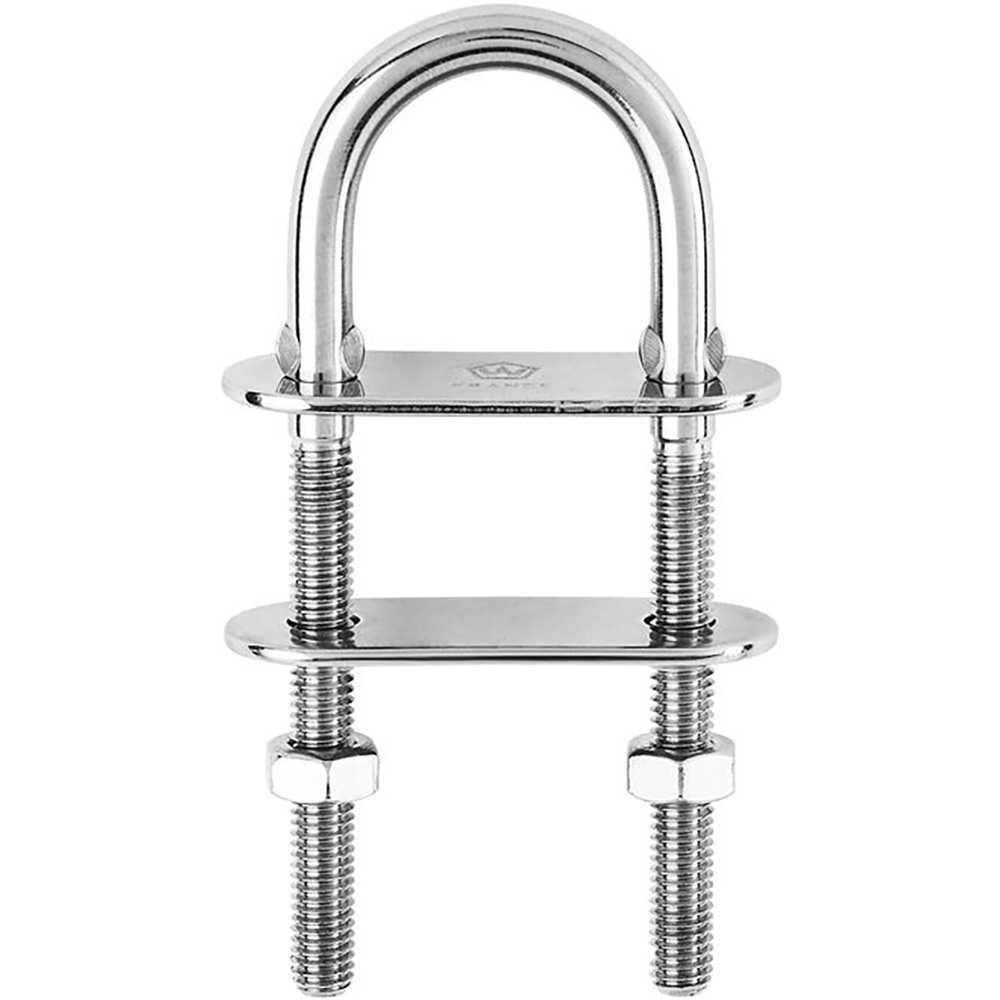

U-Bolt Pad Eye – 5mm Diameter – 13/64″ – 60mm Length – 2-23/64″

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks…)
• Delivered with bolts and counter-plate
• Max tightening torque: 4.5 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 1410 / (kg) 640
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.077 / (g) 35

Dimensions:

• A: (inch) 1 7/64″ / (mm) 28
• B: (inch) 15/16″ / (mm) 24
• C: (inch) 1 3/16″ / (mm) 30
• D diameter: (inch) 13/64″ / (mm) 5
• Length: (inch) 2 23/64″ / (mm) 60

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
