Description

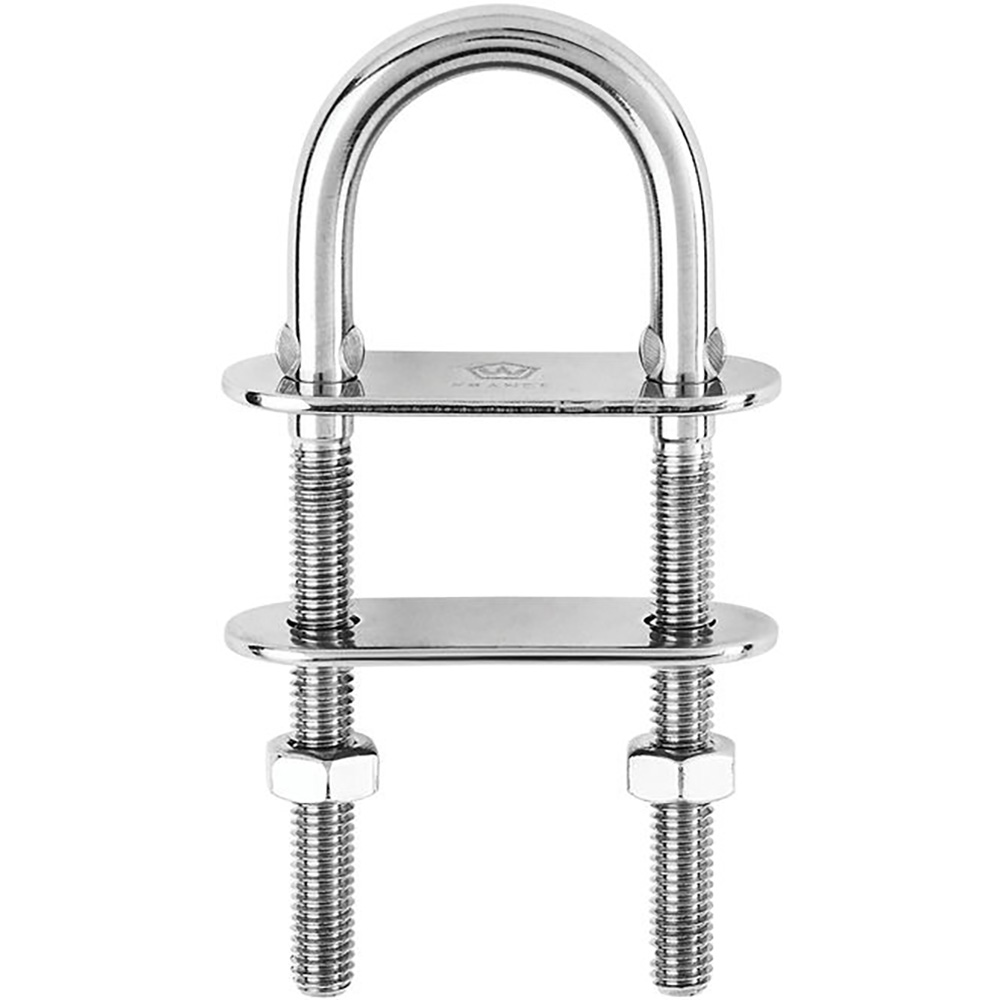

U-Bolt Pad Eye – 12mm Diameter – 15/32″ – 130mm Length – 5-1/8″

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks…)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.769 / (g) 349

Dimensions:

• A: (inch) 1 47/64″ / (mm) 44
• B: (inch) 1 11/32″ / (mm) 34
• C: (inch) 2 3/4″ / (mm) 70
• D diameter: (inch) 15/32″ / (mm) 12
• Length: (inch) 5 1/8″ / (mm) 130

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
