Description

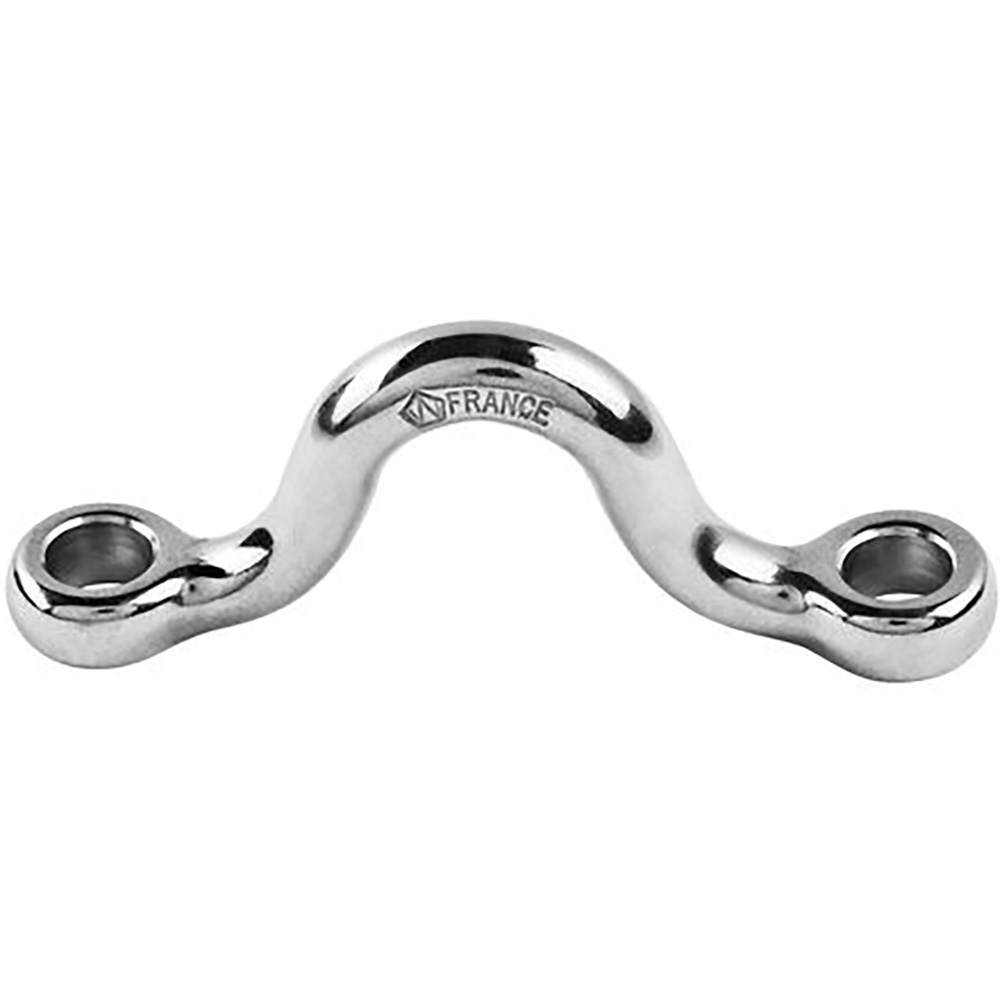

Eye Strap – 6mm Diameter – 15/64″- 45mm Spacing – 1-49/64″

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes…)


Applications:

• Fastening applications
• Attachment of straps & cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 5290 / (kg) 2400
• Weight: (lb) 0.035 / (g) 16

Dimensions:

• A: (inch) 15/32″ / (mm) 12
• B: (inch) 5/8″ / (mm) 16
• D diameter: (inch) 15/64″ / (mm) 6
• E: (inch) 1 49/64″ / (mm) 45

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
