Description

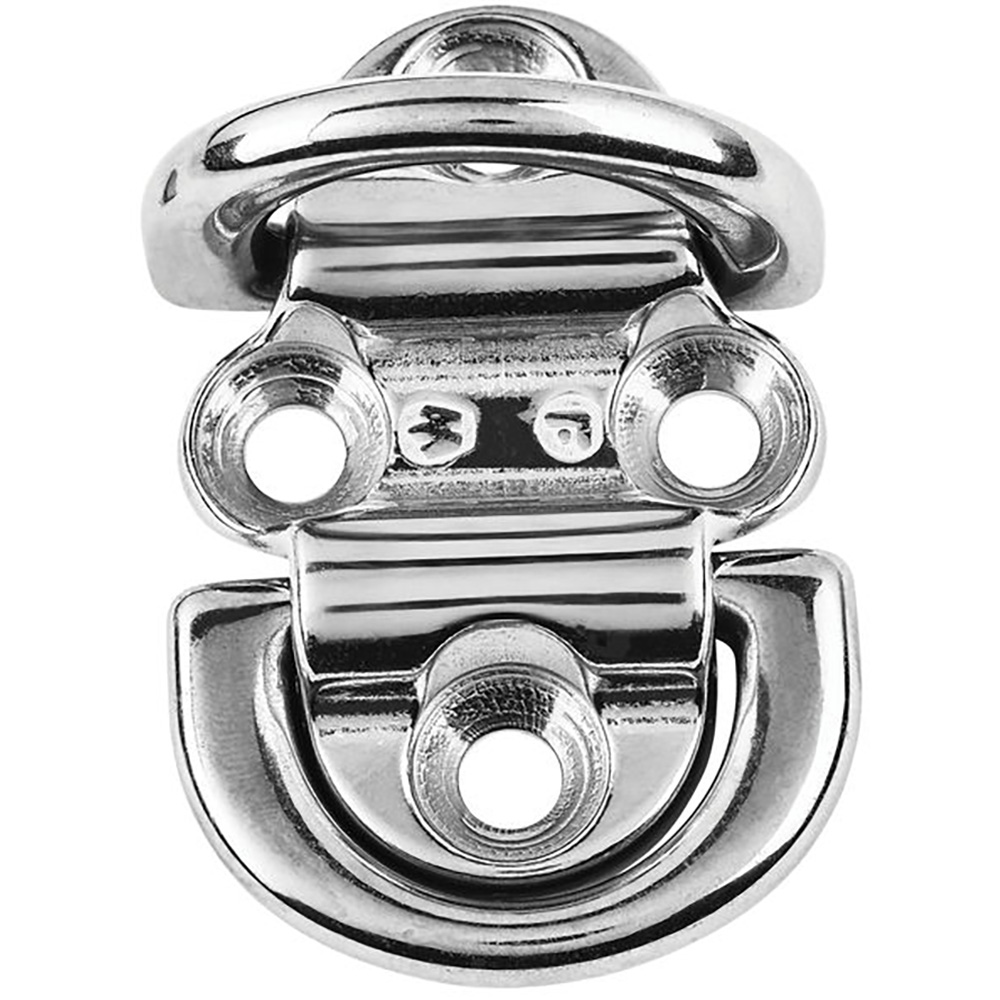

Double Folding Pad Eye – 6mm Diameter – 15/64″

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• Breaking load; (lb) 5510 / (kg) 2500
• Weight: (lb) 0.278 / (g) 126

Dimensions:

• A: (inch) 1 49/64″ / (mm) 45
• B: (inch) 1 1/16″ / (mm) 27
• C: (inch) 35/64″ / (mm) 14
• d diameter: (inch) 1/4″ / (mm) 6.4
• D diameter: (inch) 15/64″ / (mm) 6
• E: (inch) 2 61/64″ / (mm) 75
• F: (inch) 2 21/64″ / mm) 59

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
