Description

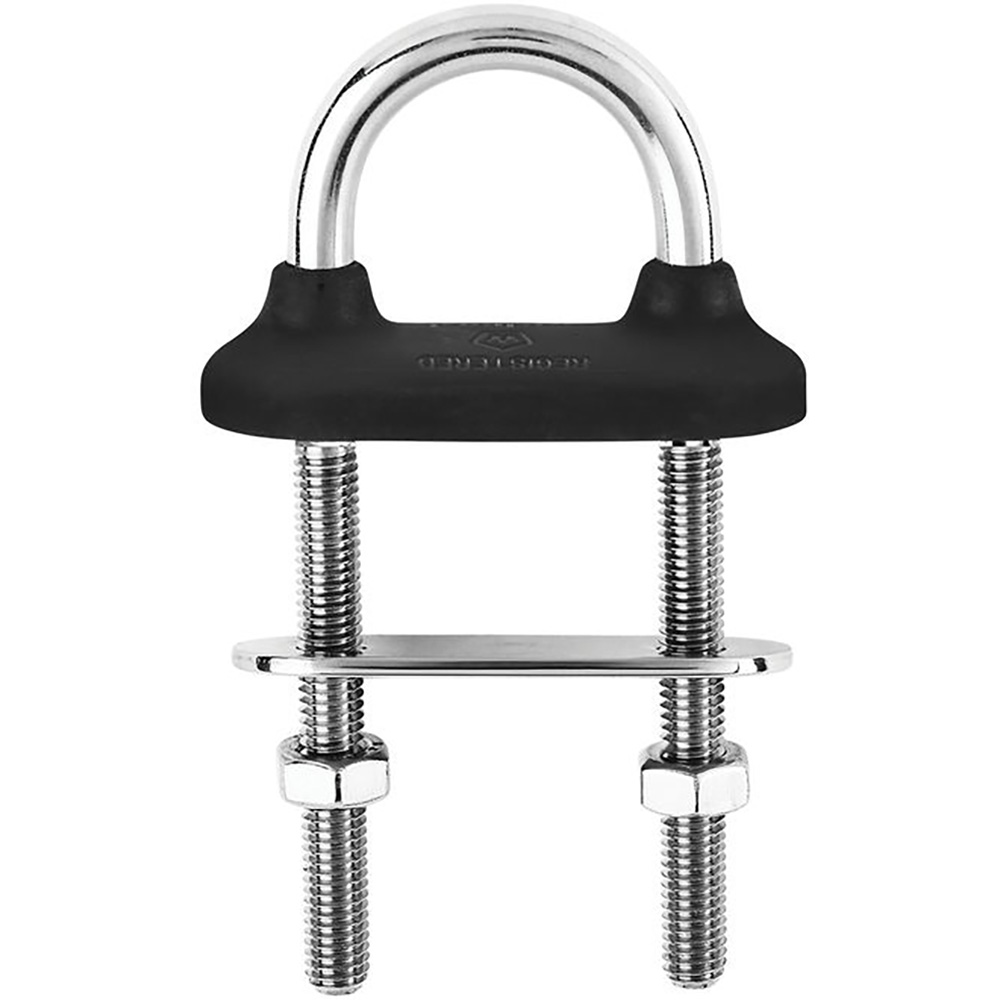

Black Watertight U-Bolt – 8mm Diameter – 5/16″ – 80mm Length – 3-5/32″

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 18 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 10580 / (kg) 4800
• Weight: (lb) 0.271 / (g) 123

Dimensions:

• Length: (inch) 3 5/32″ / (mm) 80
• A: (inch) 1 27/64″ / (mm) 36
• B: (inch) 63/64″ / (mm) 25
• C: (inch) 1 37/64″ / (mm) 40
• D diameter: (inch) 5/16″ / (mm) 8

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
