Description

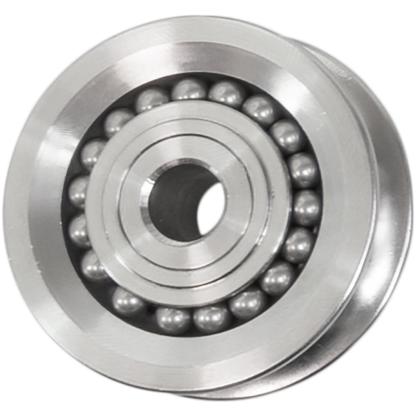

Series 40 Orbit BB Sheave HHL

High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.

Specifications:

• Sheave
• Captive HHL
• Width: 15.5mm/5/8″
• Sheave Diameter: 40mm/1-9/16″
• Maximum Rope: 10mm/3/8″
• M.W.L.: 1500kg/3310lbs
• Weight: 77g/2.7oz
