Description

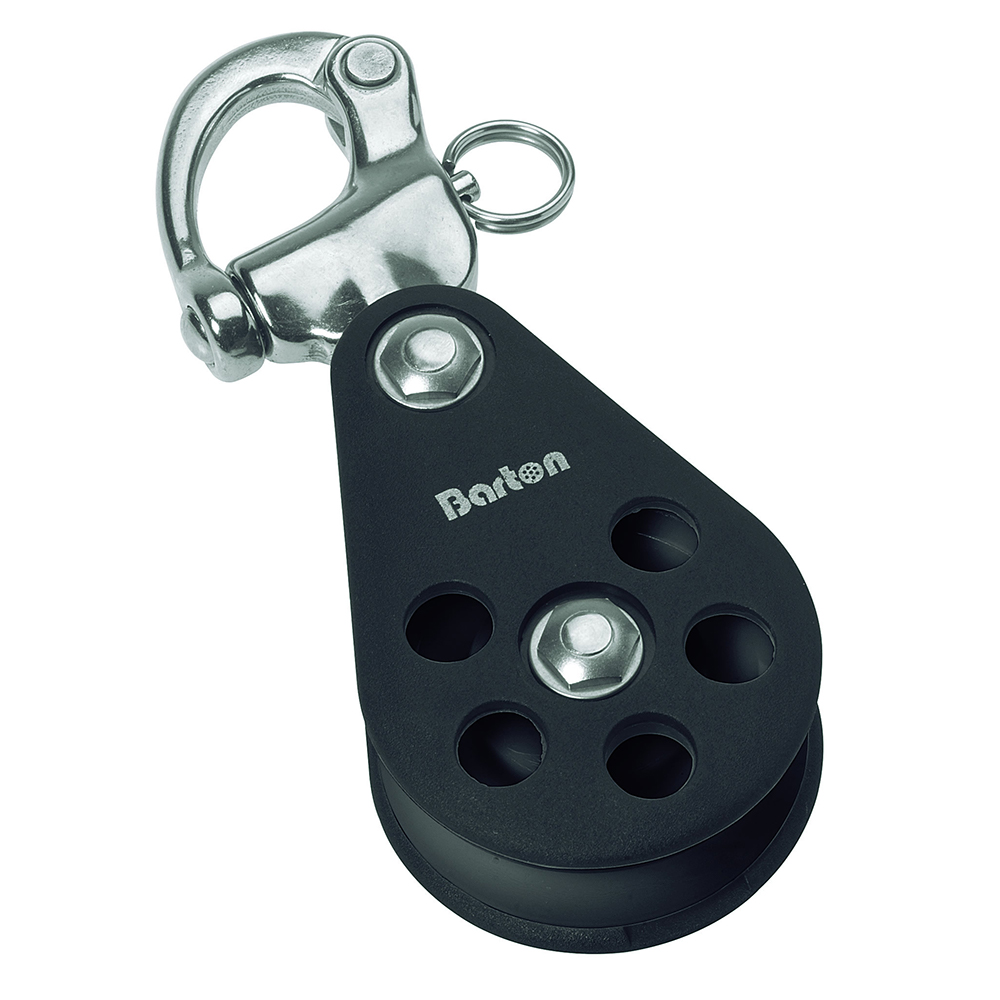

Series 5 Single Snap Shackle Block – 54mm

Plain Bearing Blocks

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Specifications

• Sheave size: 54mm x 17mm
• Max rope diameter: 12mm
• Safe working load: 750kg / 1650lbs
• Breaking load: 1500kg / 3300lbs
• Length: 142mm
• Weight: 263g
