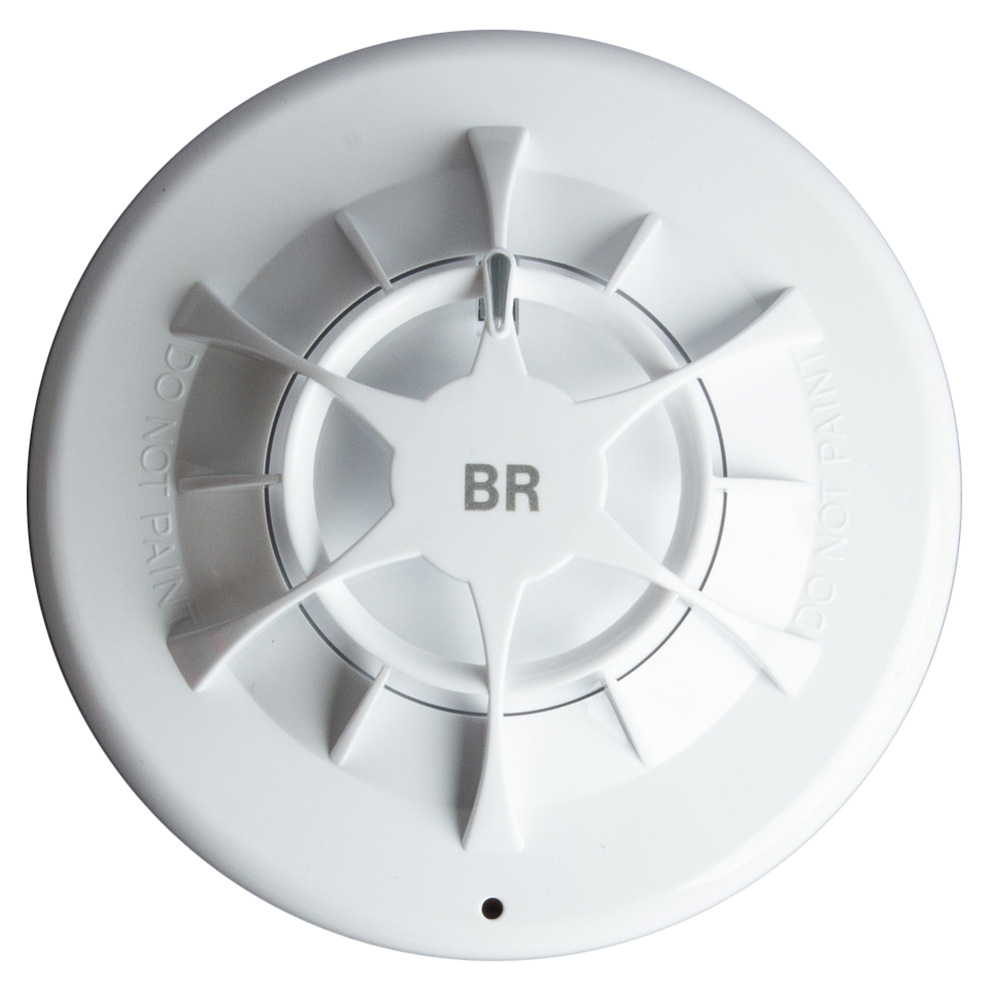

Fireboy-Xintex Rate-of-Rise Heat Detector w/Base

$175.00 $109.38

In stock

SKU: FIR-OMHD-04-DB-R Categories: ,

Description

Rate-of-Rise Heat Detector with Base

The Fireboy-Xintex Heat Detector uses a single thermistor to sense the air temperature around the detector. This heat detector was designed to detect how fast the temperature is increasing.

Features:

  • 163°F Rate-of-Rise Heat Detector
  • Housing: White flame-retardant polycarbonate
  • Terminals: Nickel-plated stainless steel
  • Ideal in environments that are dirty or smoky
  • Unaffected by wind or atmospheric pressure
  • Remote test feature

Specifications:

  • Detection Principle: Measurement of heat using a thermistor
  • Sampling Frequency: Once every four seconds
  • Supply Voltage: 8.5 V dc to 33 V dc
  • Supply Wiring: Two wire supply, polarity sensitive
  • Power-up Time: < 20 seconds
  • Minimum: ‘detector active’ voltage: 6 V
  • Holding Voltage: 5 V – 33 V
  • Minimum Holding Current: 8 mA
  • Minimum Voltage to Light Alarm LED: 5 V
  • Alarm Reset Voltage: < 1 V
  • Alarm Reset Time: One second
  • Alarm Indicator: Integral indicator with 360º visibility
  • Operating & Storage Temperature: -40ºC to +70ºC

Operation:

  • Open-web casing that enables air to flow freely across a thermistor which measures the air temperature every two seconds
  • A microprocessor stores the temperatures and compares them with pre-set values to determine whether a fixed upper limit – the alarm level – has been reached
  • Detectors the microprocessor uses algorithms to determine how fast the temperature is increasing

Additional information

Weight 0.35 lbs
