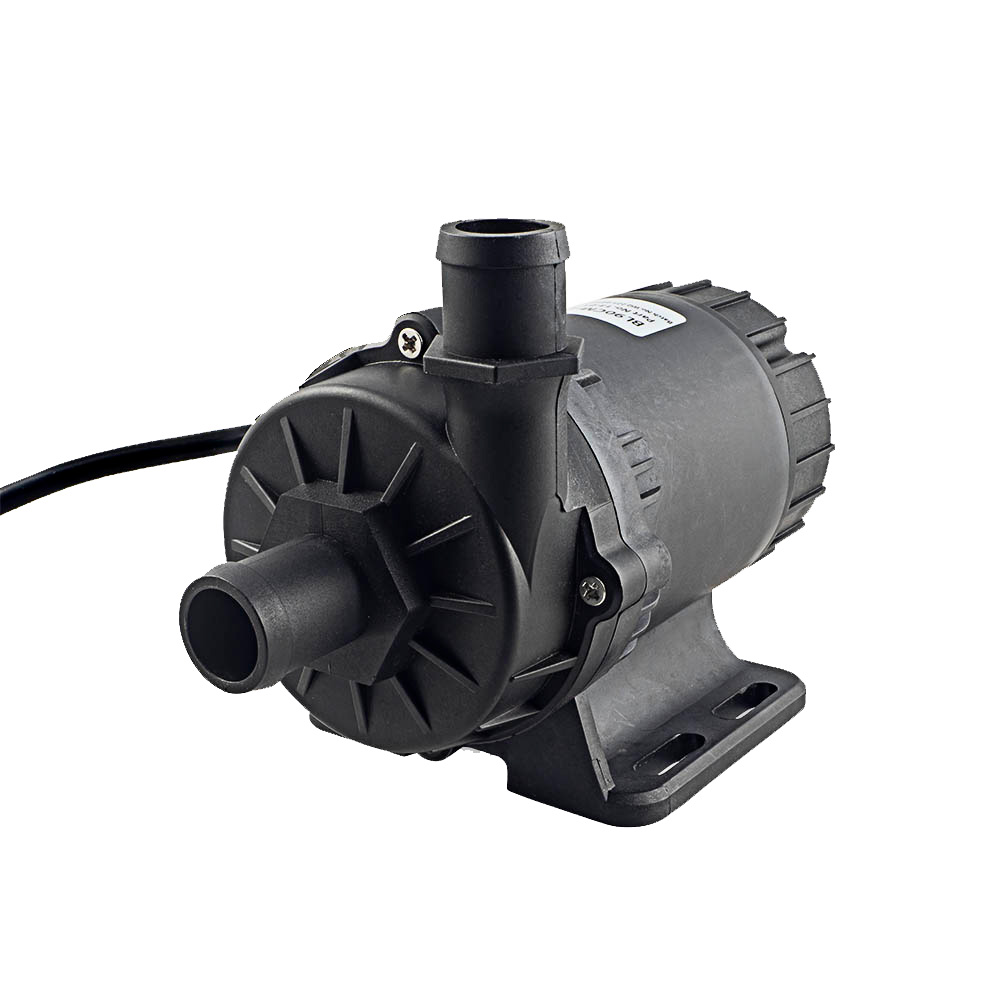

Albin Group DC Driven Circulation Pump w/Brushless Motor – BL90CM 12V

$229.25 $179.30

Out of stock

SKU: ALI-13-01-003 Category:


 DC Driven Circulation Pump with Brushless Motor – BL90CM 12V

DC Driven Circulation Pump With Brushless Motor – BL90CM 12VThis circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.


  • Motor brush-less magnetic isolated design
  • For continuous duty
  • Life span: 20,000 hours
  • Materials of pump housing: ABS, PES/SPS7PA66
  • Motor IP classification: IP 68
  • Noise class: 35dB
  • The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C


  • Port size: (inch) 3/4″ / (mm) 20
  • Weight: 0.89 kg
  • Capacity at 0.1 bar: 51 l/min
  • Capacity at 0.25 bar: 47 l/min
  • Max load: 6.6 A
  • Max power consumption: 80 W

*Includes pump and motor
