Description

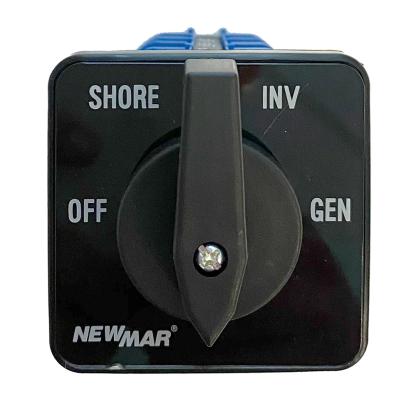

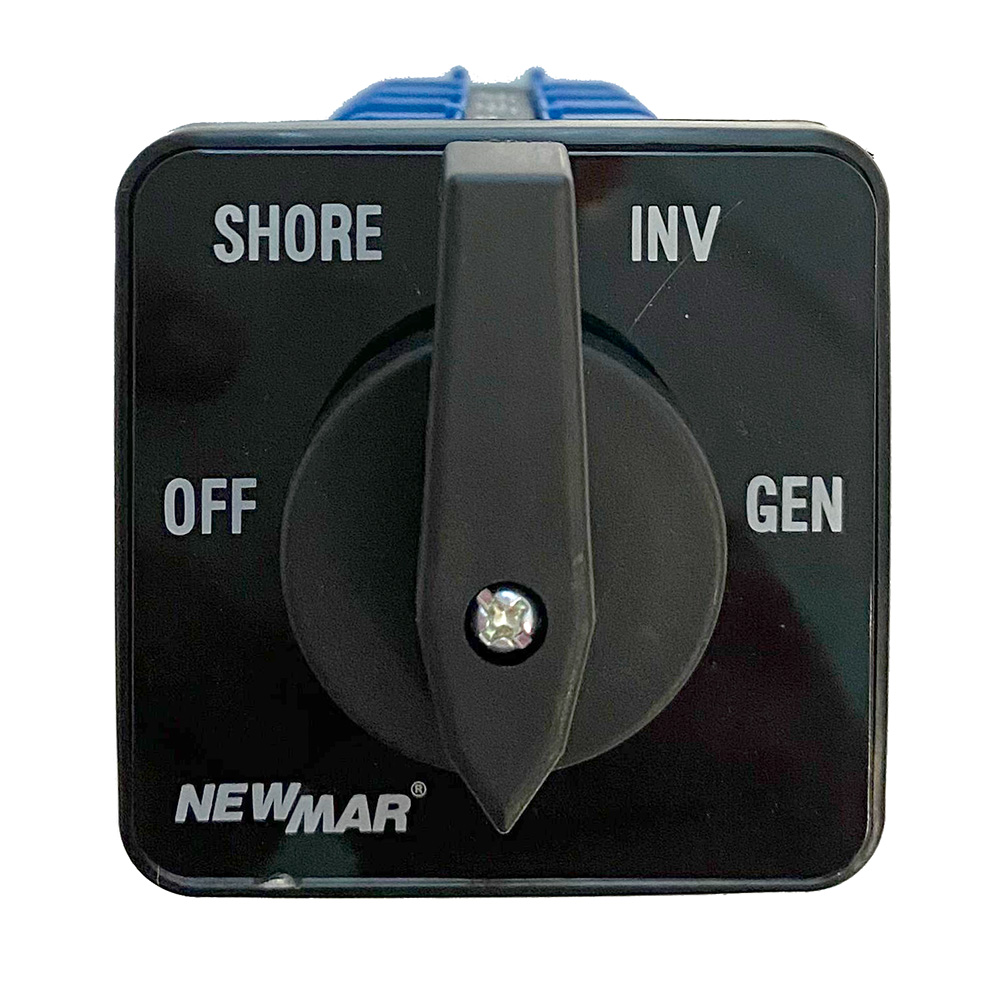

SS Switch – 7.5 INV AC Selector Switch

This AC source selector switch is an essential item for any vessel with an on-board AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.

The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.

The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.

Features:

• May be rear-mounted in a panel with a thickness up to 1/4”
• For vessels with onboard generator and inverter

Specifications:

• Amperage @ 115/230V: 63
• Number of Poles: 2
• Switch Positions: 3 + “OFF”
• Standard Plate Markings: OFF-GEN-INV-SHORE
• Depth Dimensions: 3-1/2 in.
