Description

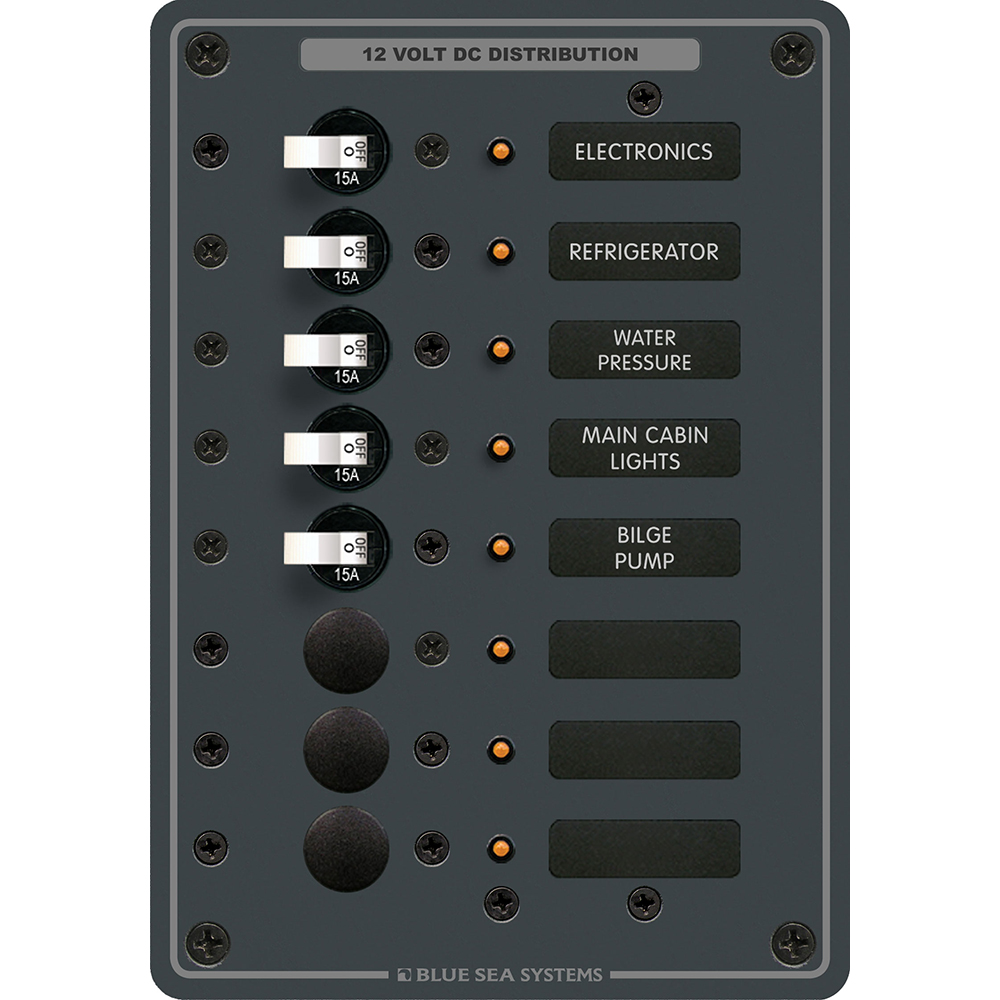

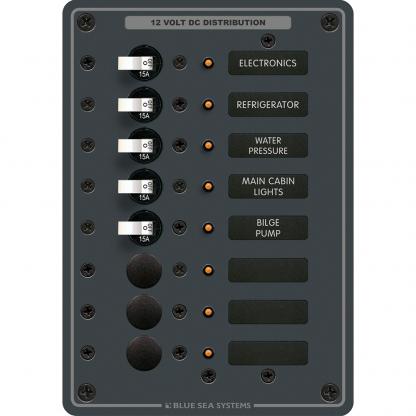

8023 DC 8 Position Circuit Breaker – White Switches
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels – No kit required
- “ON” indicating LEDs installed in all circuit positions
Specifications:
- Positions: 8
- Nominal Voltage: 12v / 24v DC
- Maximum Amperage: 100A
- Height: 7.5″
- Width: 5.25″
Included:
- (5) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
- (1) 8030 Basic DC Panel Label Set – 30 Labels
