Description

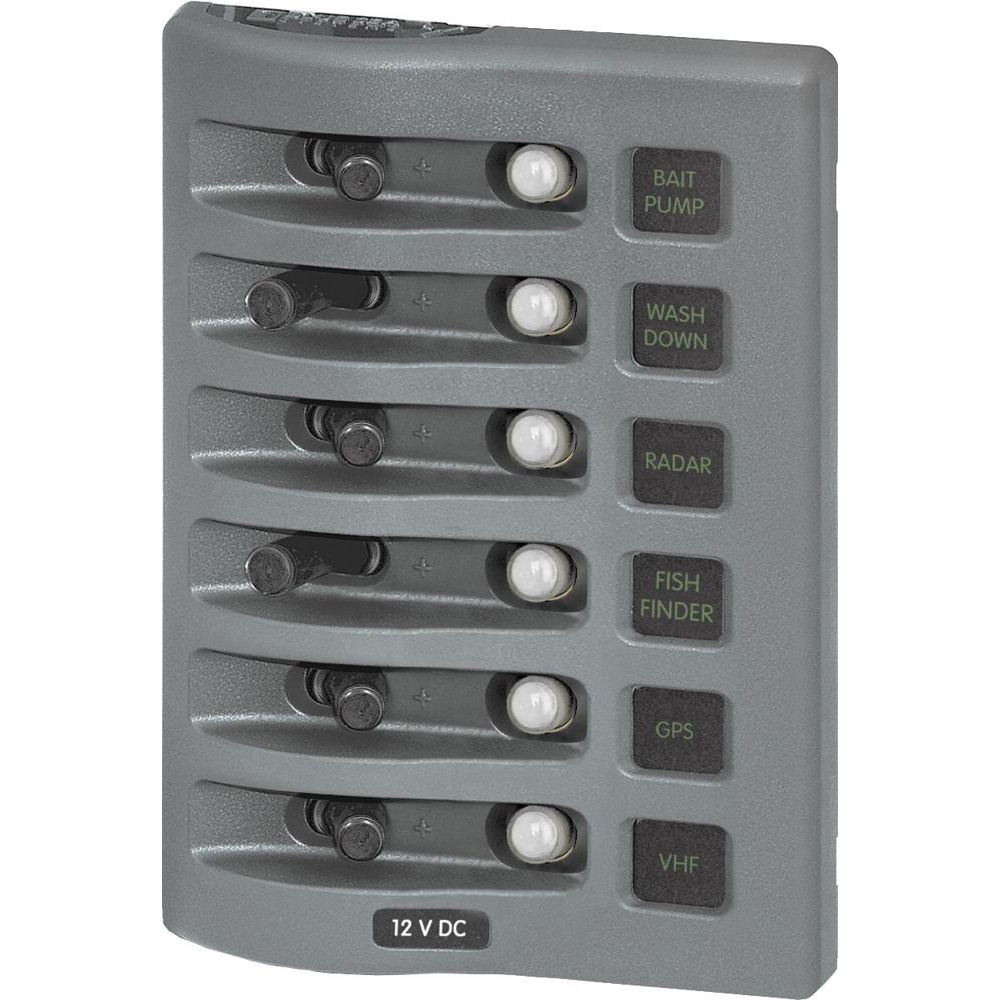

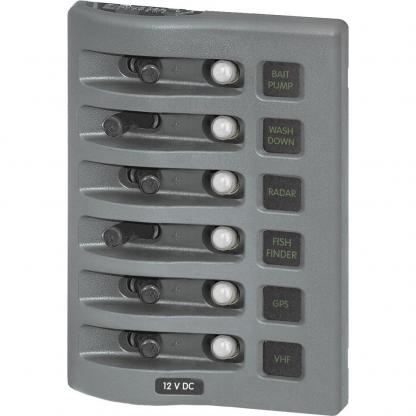

WeatherDeck™ Water Resistant Circuit Breaker Panel

PN: 4376

Color: Gray

Features:

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Each panel can be mounted in four different orientations
• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

• Weatherproof: Waterproof
• Positions: 6
• Nominal Voltage: 12v / 24v DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA/Illuminated Circuit
• Backlighting Voltage: 12 or 24v DC
• Height: 6.0″
• Width: 4.25″
• Depth: 3.5″

Included:

• (6) 4135 Push Button Reset Only Circuit Breaker Boot – Clear
• (6) 4138 WeatherDeck® Toggle Switch Boot – Black
• (6) 4150 WeatherDeck® Toggle Switch SPST – ON-OFF
• (1) 4215 Waterproof DC Label Kit – 30 Black Square Labels V1
• (6) 7056 Push Button Reset Only Quick Connect Circuit Breaker – 15 Amps
