Description

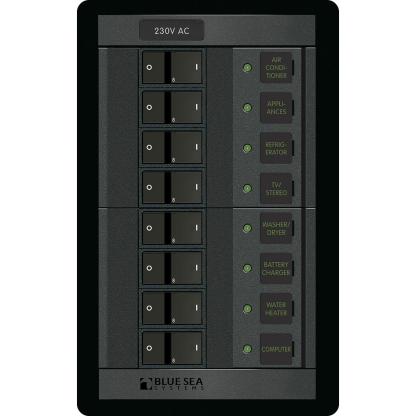

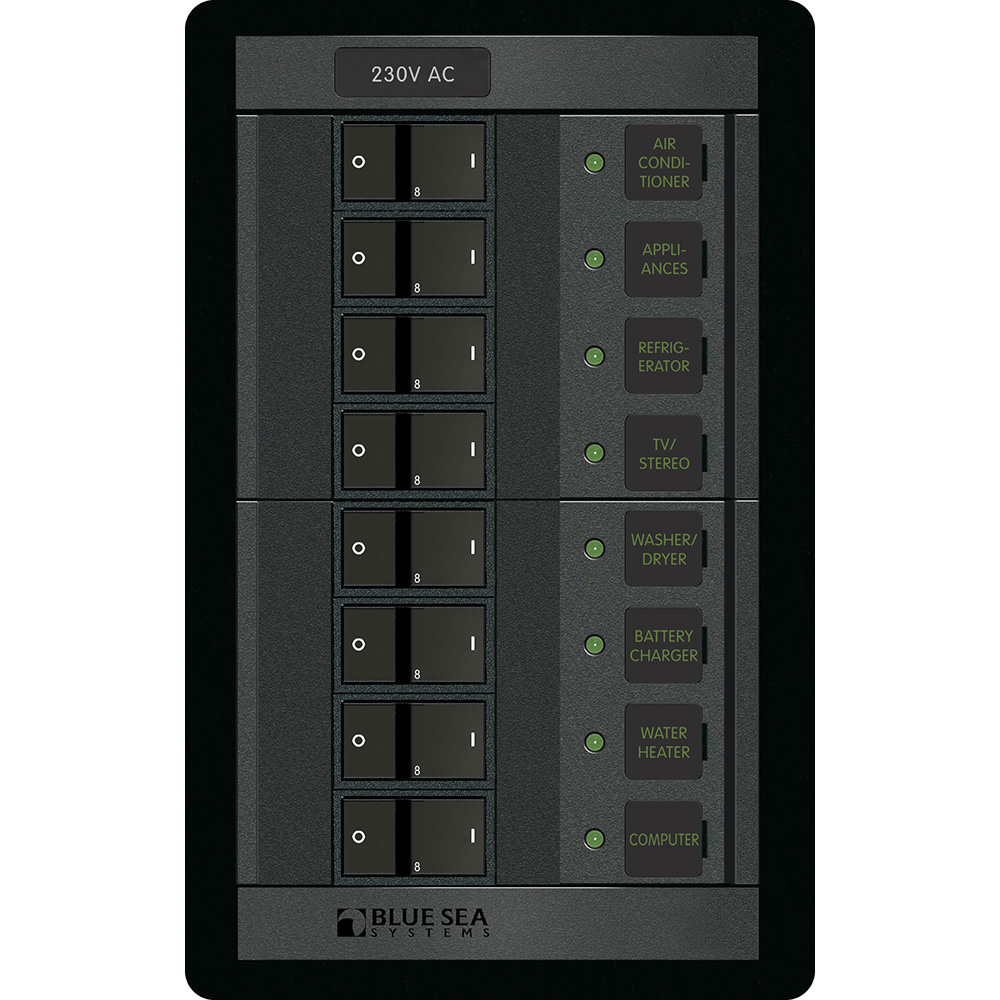

230 Volt AC 8 Position 360 Panel

This 360 Panel System consists of modules. Each module contains a meter, a battery switch, and 8 circuit-labeled positions.

Features:

• All circuit label positions are backlit
• “ON” indicating LEDs installed in all circuit positions
• Includes 4206—Square Format Label Set

Specifications:

• Positions: 8
• Nominal Voltage: 230V AC
• Maximum Amperage: 100A
• Height: 7.75 in. / (196.85 mm)
• Width: 4.88 in. / (123.95 mm)
• Depth: 3.00 in. / (76.2 mm)
• Weight: 2.72 lb. / (1.23 kg)
