Description

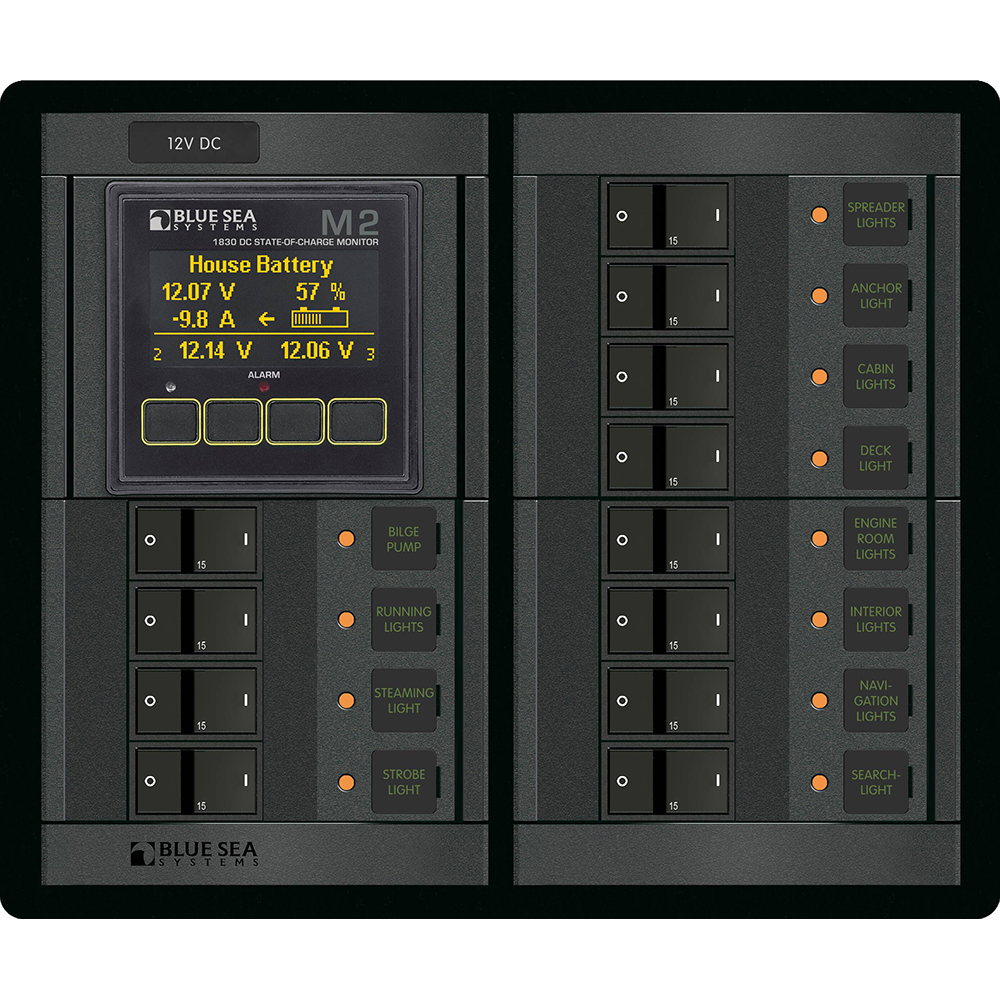

1496 – 360 Panel – 12 Position 12V Flat Rocker M2 Multimeter with SOC

Part of the Blue Sea Systems Battery Management Panels. This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

Features:

• ON-indicating LEDs
  • Backlit label positions

Technical Specifications:

• Positions – 12
• Meter – M2 Multimeter w/SOC
• Nominal Voltage – 12/24V DC
• Maximum Amperage – 100A
• Circuit Breaker Type – 12 A-Series (15A)
• Dimensions – (H x W x D) – 7.75″ x  9.25″” x 4″ (197 x 235 x 102mm)

In the Box:

• 1496 Panel
• Instruction Manual

*Sold as an Individual
