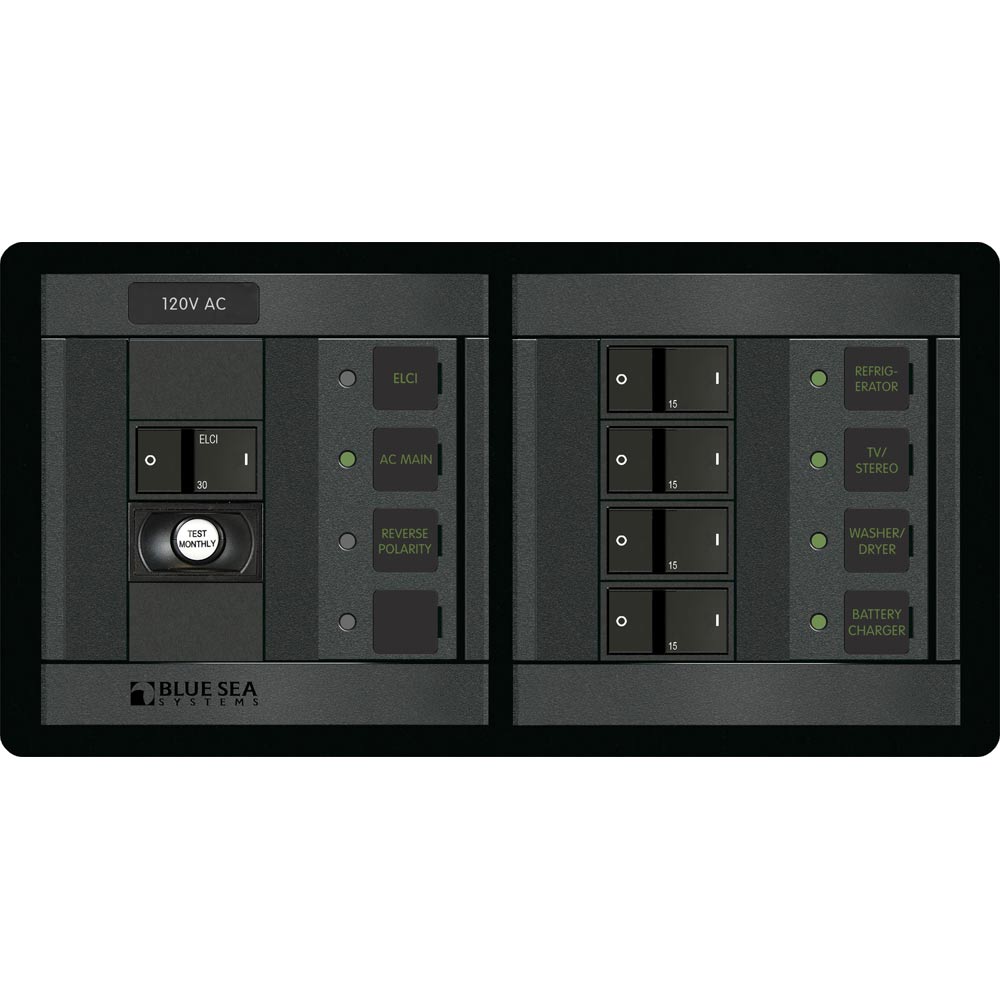

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal

$743.10 $491.16

Out of stock

SKU: BLE-1193 Category:

Description

ELCI Main 30A Double Pole + 4 Positions Horizontal

Features:

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate – 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Four 15A AC Branch Flat Rocker Circuit Breaker
  • Red ” Reverse Polarity” LED
  • Includes 4206 AC Panel Basic Square Format Label Set
  • All circuit label positions are backlit
  • “ON” indicating LEDs

Specifications:

  • Positions: 1
  • Nominal Voltage: 120V AC
  • Height: 4.75″ (120.65mm)
  • Width: 4.88″ (123.95mm)
  • Depth: 3.99″ (101.35mm)
  • Weight: 1.00lb (0.45kg)

Includes:
(4) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 3102100 – A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional information

Weight 3.8 lbs
