Description

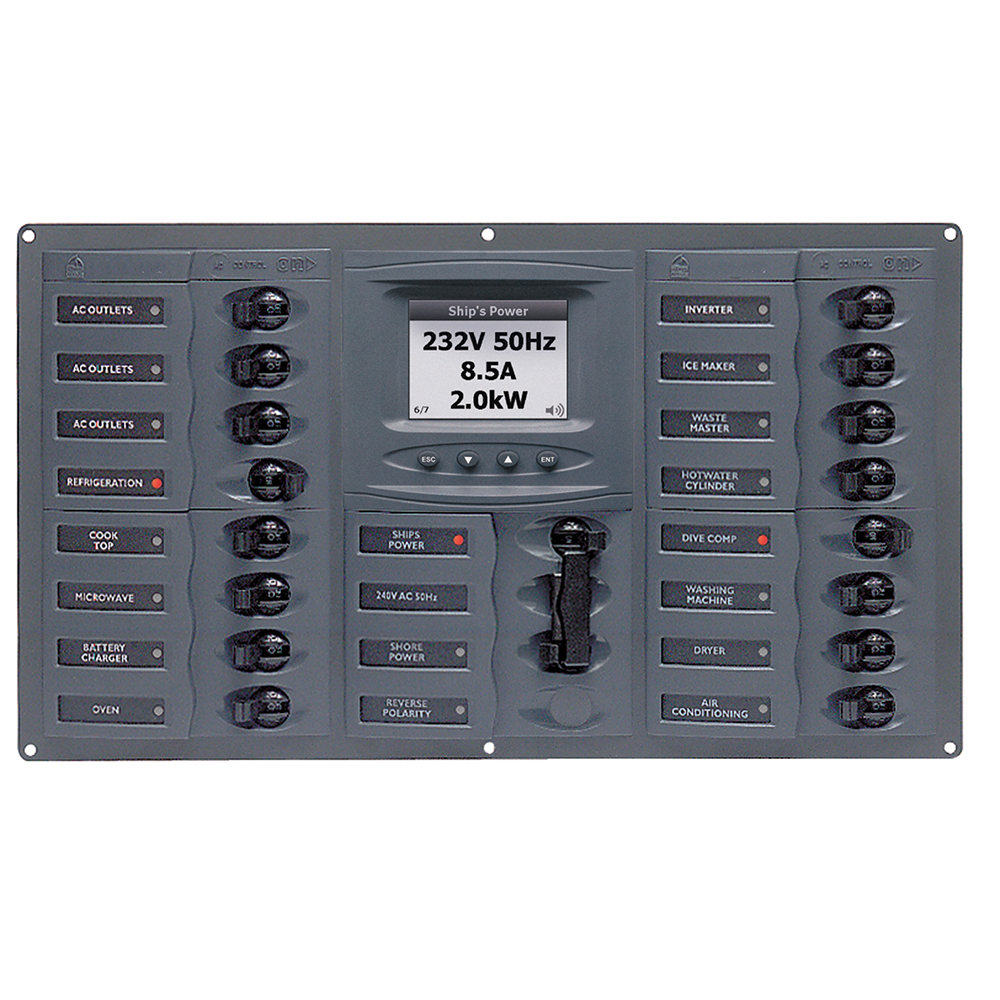

AC Circuit Breaker Panel with Digital Meters, 16SP 2DP AC230V ACSM Stainless Steel Horizontal
Features:
- Supplied with transducer
- Reverse polarity indicator
- Double pole mains input CBs with side lockout
- Digital meter shows volts, amps and frequency
- LED wired to indicate live panel with mains breaker either on or off
- AC source selector ensures no cross over between AC inputs (ship or
- shore power)
Specifications:
- Total Positions: 16 Loads + 2 Inputs
- Circuit Breakers: 1x 5A, 5x 10A, 7x 15A, 2x 20A, 1x 25A + 1x 20A, 1x 50A
- Nominal Voltage: 230V AC
- Maximum Amperage: 50A
- Dimensions: 7.9″ X 13.9″ X 2.5″
- Neg Bus: IS-6MM-2
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
