Description

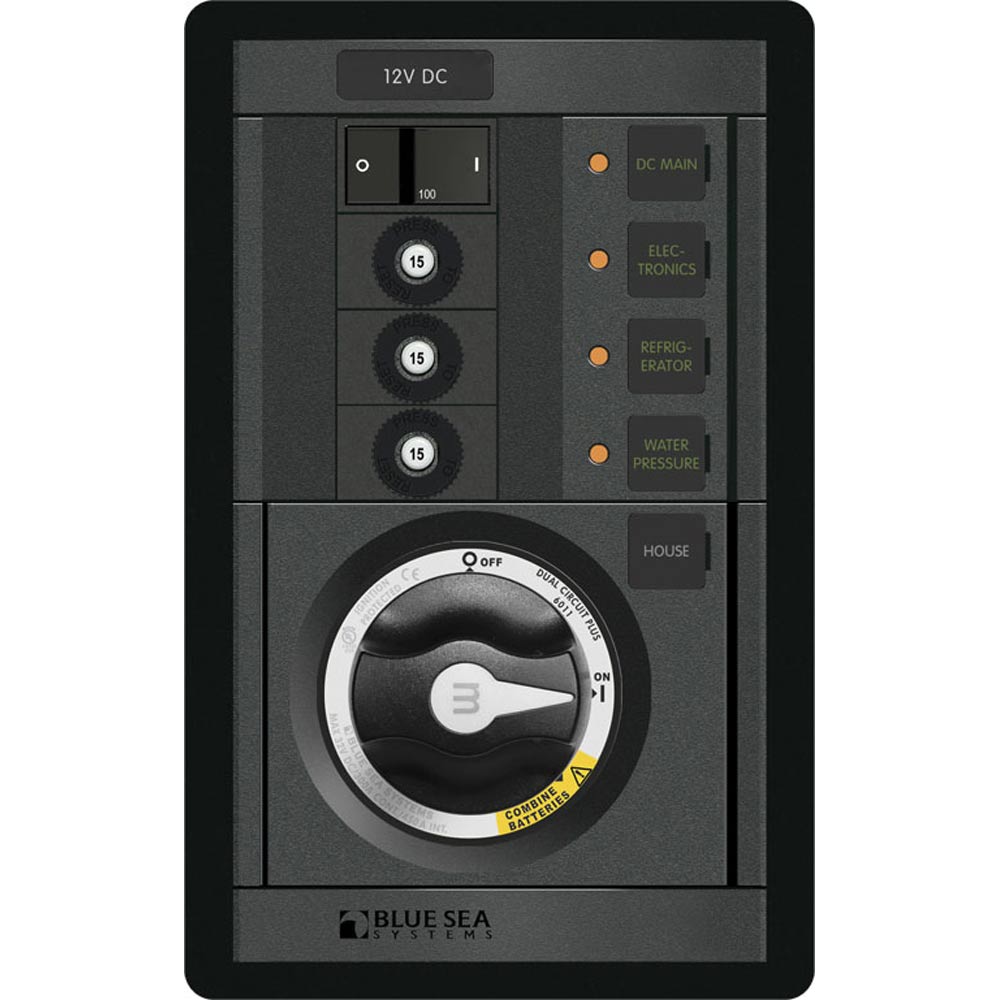

M-Series Dual Circuit Plus™, Main + 3 Positions CLB Vertical

Features:

• Push Button Reset-Only Branch Circuit Breakers provide economical high-density circuit protection when switching is provided elsewhere – ideal for 24-hour circuit protection

• Provides DC Main circuit protection

• Backlit label positions

• “ON” indicating LEDs installed in all circuit positions

• 24-hour circuits

• Snap on end-plates conceal mounting screws

• Labels can be removed and replaced from the front of the panel

• Incorporates M-Series Dual Circuit Plus™ Battery Switch 6011200

• Includes 4218-Square Format Label Set

Specifications:

• Positions:3

• Nominal Voltage:12V DC

• Height:7.75″ (196.85mm)

• Width: 4.88″ (123.95mm)

• Depth:3.50″ (88.9mm)

• Weight:2.42lb (1.1kg)
