Description

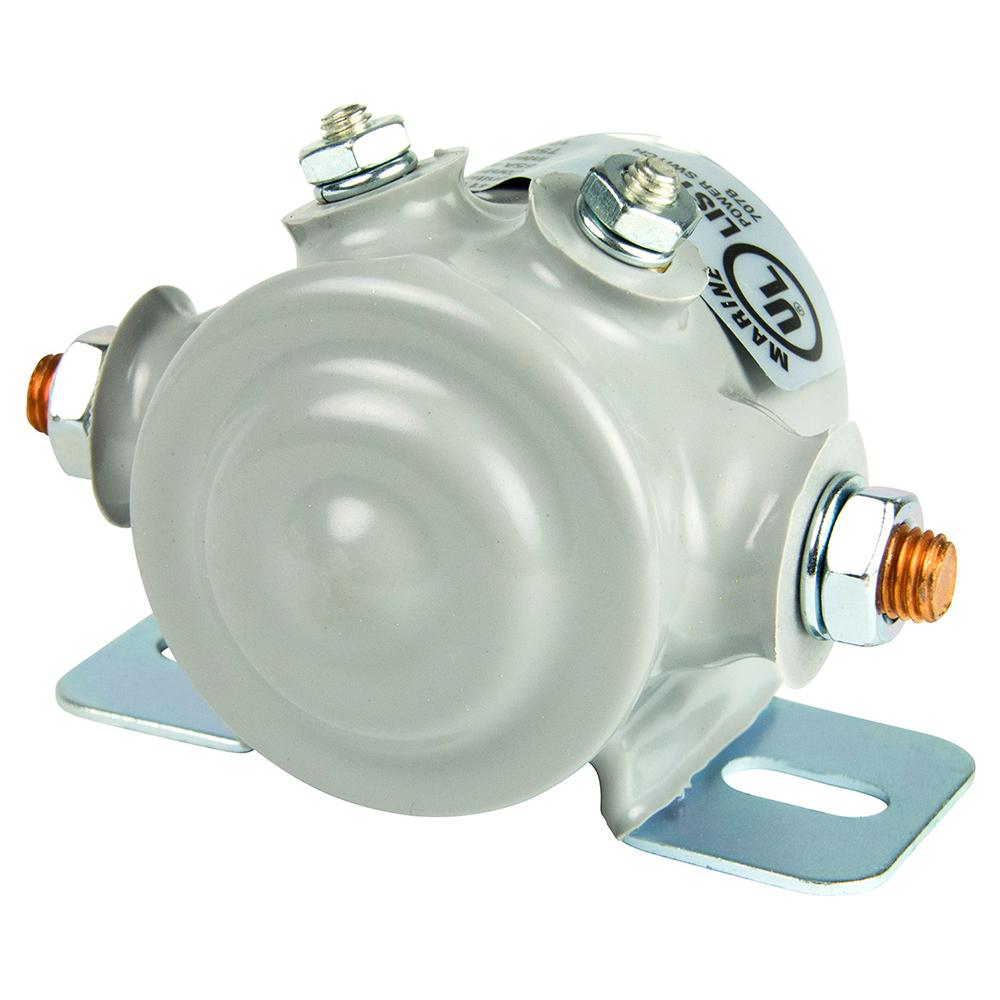

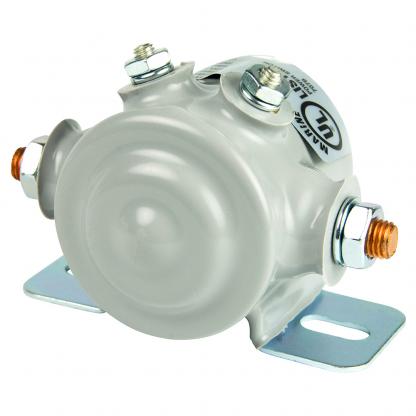

65A PVC Coated Continuous Duty Solenoid

Remotely switch high amperage loads with a low amperage on-off switch.

Features:

• Continuous duty, 65A at 12V DC
• Intermittent rating 100A: 10 seconds
• Copper #10-32 thread signal terminals
• Copper 5/16”-24 thread contact terminals
• PVC coated steel case
• Bracket mounting holes 5/16” x 19/32”, 2-13/64” on centers
• UL and CE approved
• Same as Cole Hersee part number 24117-01
