Description

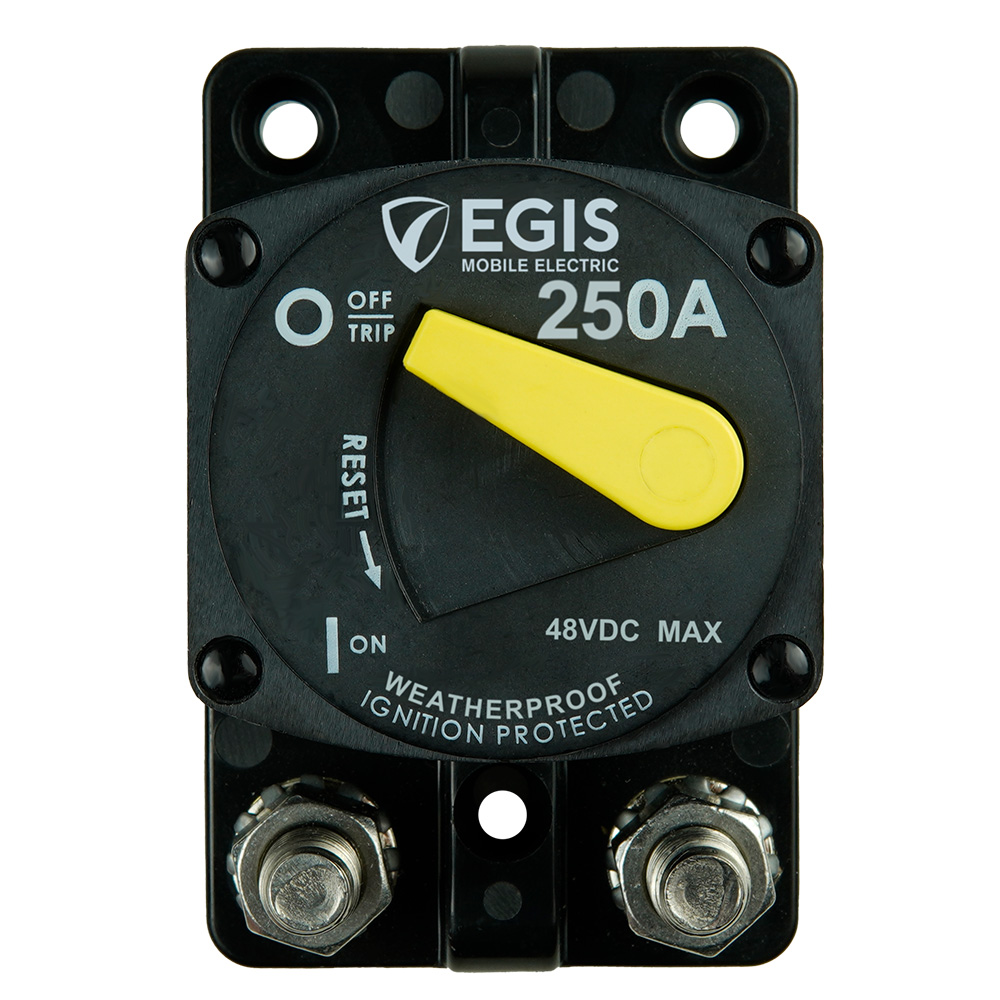

250A Surface Mount 87 Series Circuit Breaker

This 250A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48 Vdc) rating – easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current – safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty – Egis stands behind its product’s ability to meet the user’s needs

Specifications:

• Continuous Current Amps: 250
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Reinforced Mounting

Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.
