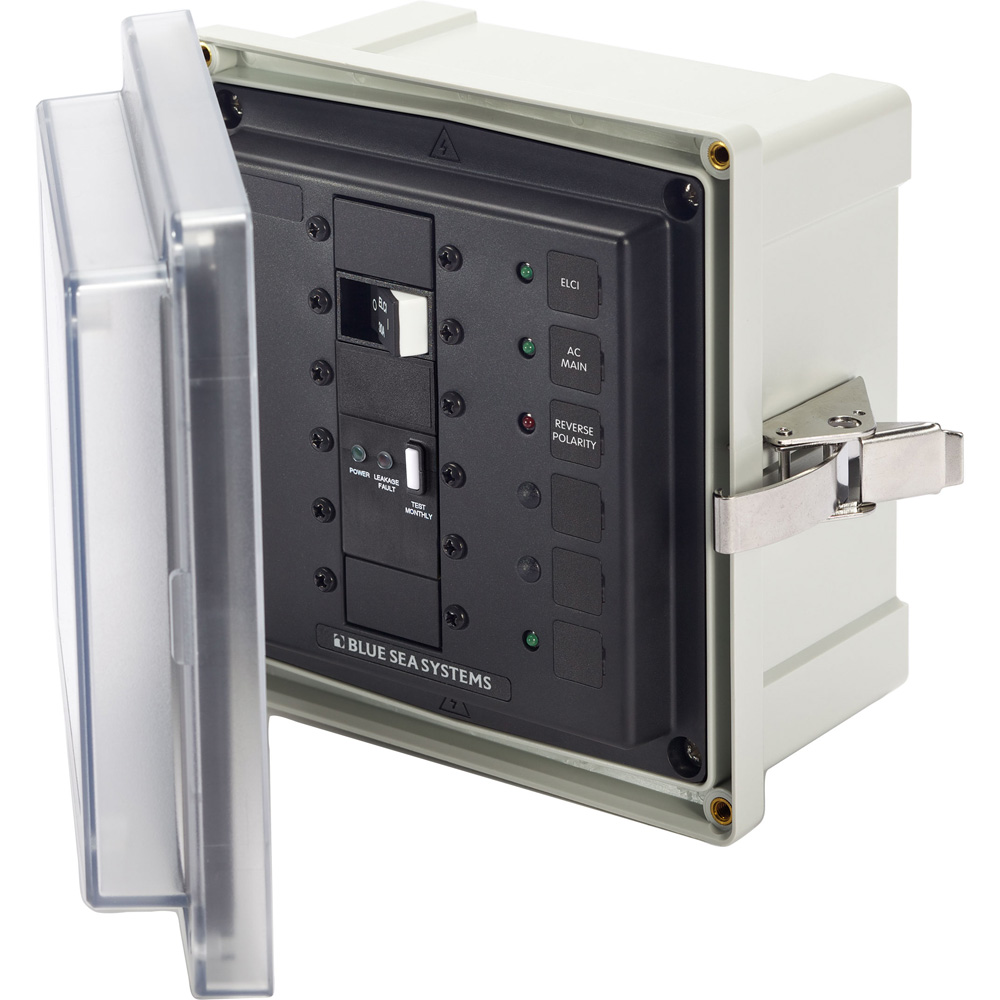

3119 SMS Surface Mount System Panel Enclosure – 120/240V AC / 50A ELCI Main – 1 Blank Circuit Position

The 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

• Includes one 120/240V AC / 50A ELCI Main and one blank position
• Blank apertures for custom breaker loading
• Glass-filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Technical Specifications:

• Minimum Operating Temperature: -35° C
• Maximum Operating Temperature: 66° C
• Cover Screws and Hardware: 10-32 Stainless Steel
• Enclosure Size: 6.0″ x 6.0″ x 4.0″ (152mm x 152mm x 102mm)
• Exterior Overall Dimensions: 7.6″ x 7.4″ x 4.7″ (192mm x 188mm x 120mm)
• Mounting Hardware: 1/4″ Diameter, #12 (6 mm)
• Weight: 7.00lb (3.18 kg)

In the Box:

• 3119 Enclosure
• Glands x 5
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual
