Description

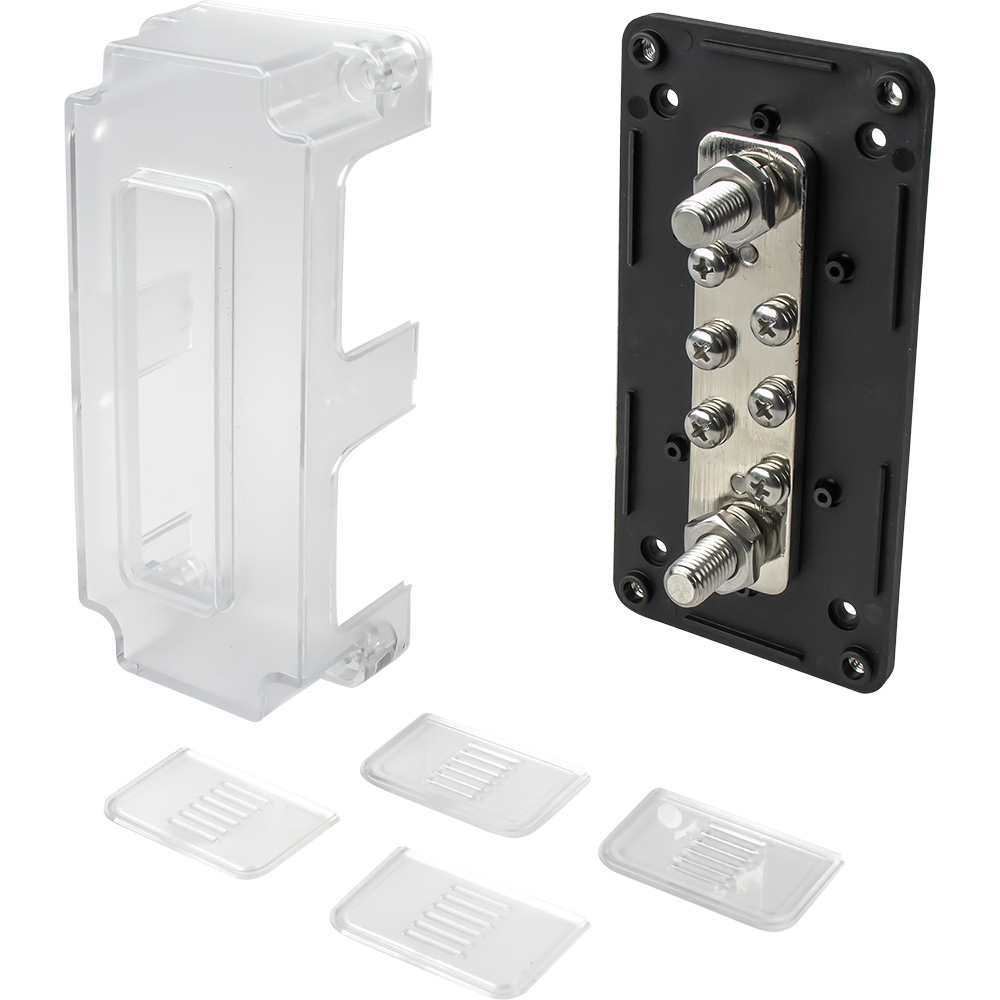

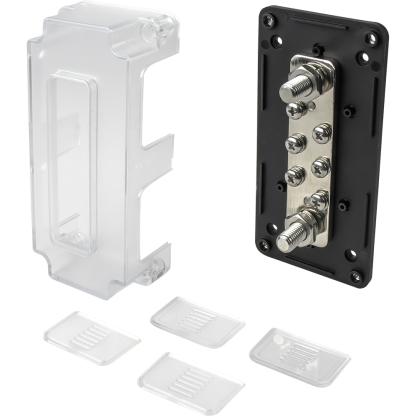

Buss Bar with Cover – 6 Terminals

This bus bar is designed for positive or negative DC distribution or collection of AC neutral or safety ground circuits. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.

Features:

• Includes two 5/16″-18 stainless steel stud terminals and six #10-32 stainless steel screw terminals
• Installs with four #8 FH fasteners (included)
• 48VDC, 300A; 300VAC, 300A maximum
• CE and RoHS compliant

Specifications:

• Terminals: 6
• Length (inch): 5-1/2″
• Width (inch): 2-3/4″
• Depth (inch): 1-11/16″
• Max. Amps: 300
• Fastener: #8 FH
• Weight: 0.68 lb.
