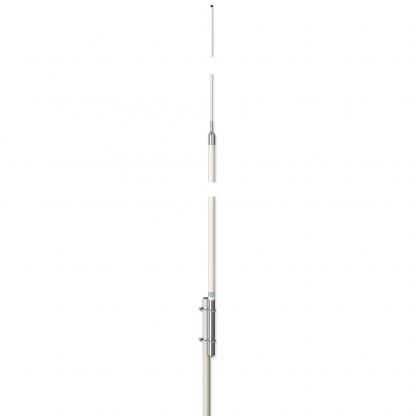

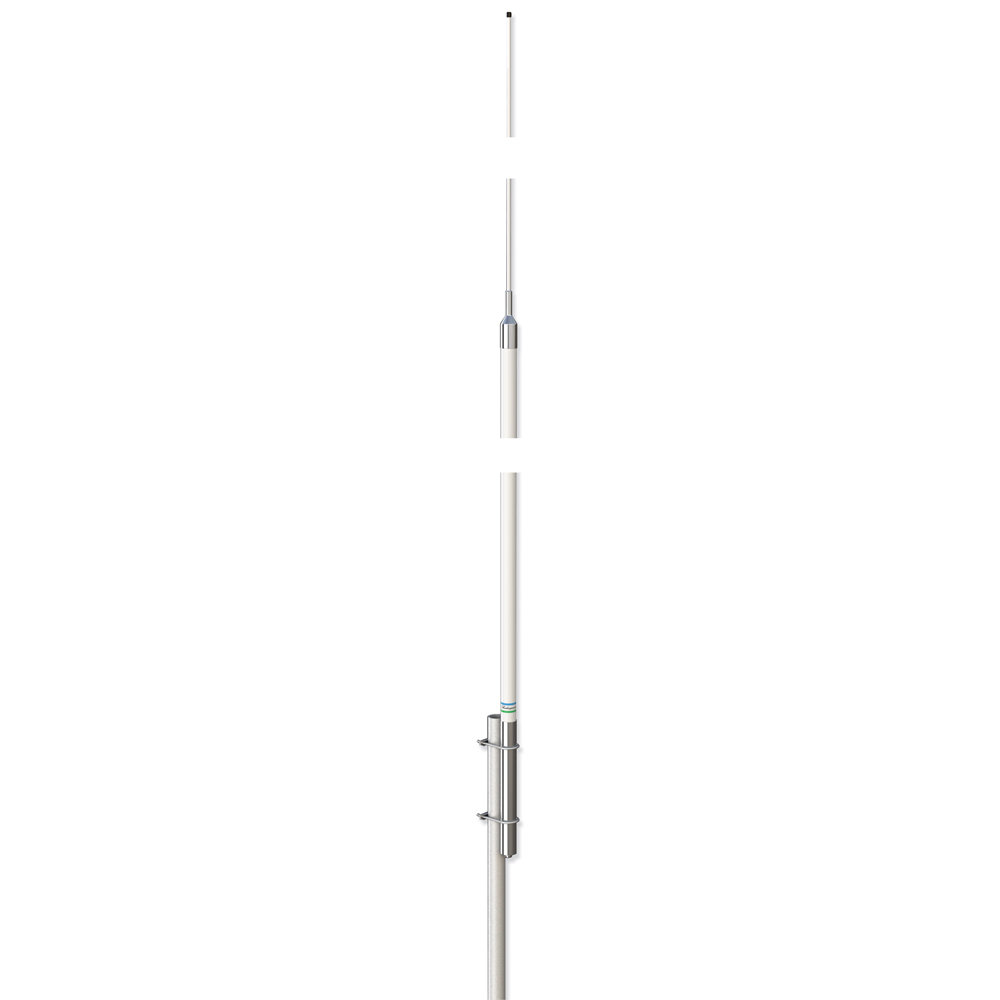

Shakespeare 399-1M 9’6″ VHF Antenna

$349.99 $299.93

Only 5 left in stock

SKU: SHK-399-1M Category:

Description

Style 399-1M VHF 6dB

Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation

The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don’t have room for one.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1"-14 thread
  • Aluminum sleeve for mast mounting
  • Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)
  • Two sections: Base 75"; Tip 39" UPS shippable

Technical Specifications:

Frequency: VHF Marine band
Bandwidth: (within 2.0:1 SWR): 5MHz
SWR: 1.5:1 at 156.8 MHz
Impedance: (ohms): 50
Gain: 6 dB
Max Input (Watts): 100
DC Ground: YES
Termination: SO – 239
Height (feet): 9.5
Polarization: Vertical
Radiation pattern: Omni-directional

Additional information

Weight 5.2 lbs
