Description

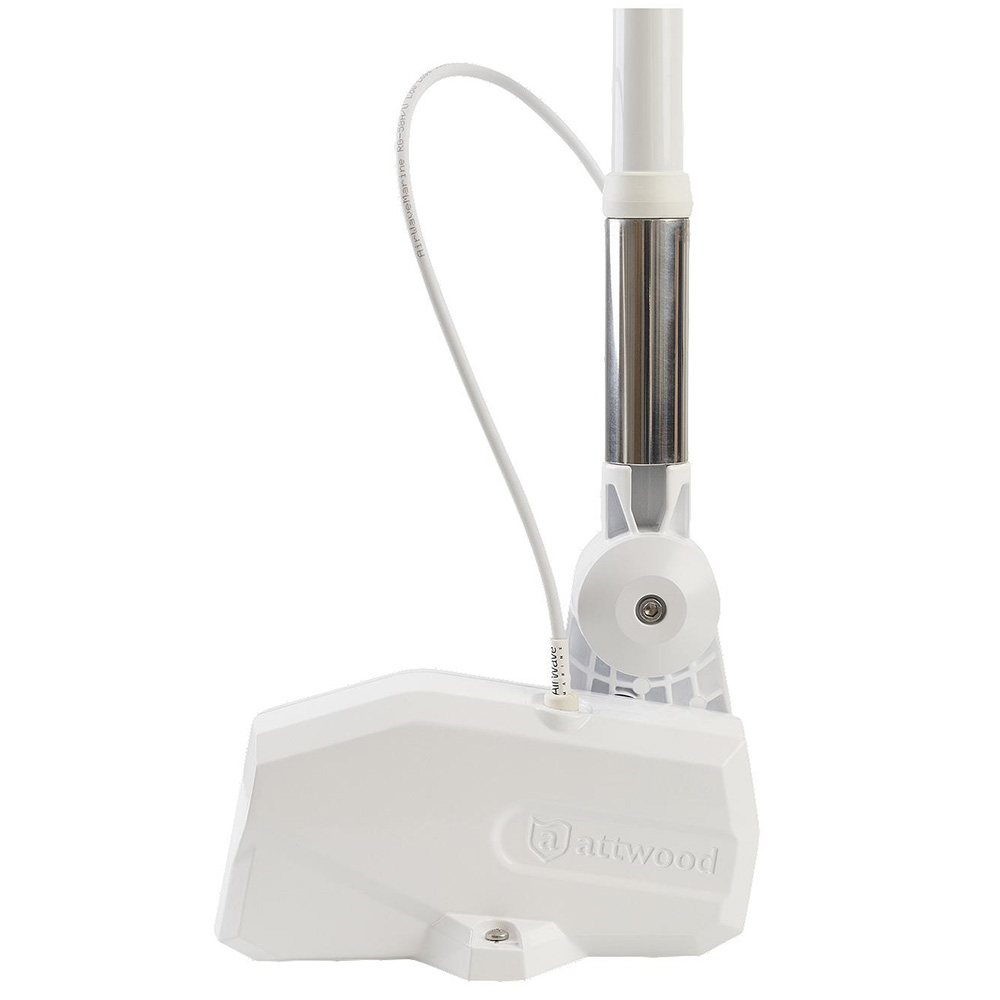

PowerBase Antenna – White Powered Fold-Down Antenna Base

The intelligent, automated folding Antenna base. PowerBase easily stows and deploys lights and antennas with the push of a button.

PowerBase is the only intelligent light/antenna with object detection technology:

• SafeGuard Breakaway: In the event of an impact, the powerbase will safely return to a stowed position preventing potential damage to the fiberglass top
• SmartDeploy Backdrive: In the event of a blocked deployment, PowerBase senses an obstruction and reverses the light/antenna back to its starting position

PowerBase is designed for worry-free installation and operation from the assembly line to the marina:

• Standardized mounting patterns allow for upgradeability
• Intuitive control without switch limitations

PowerBase is compatible/built with the leading industry equipment:

• For use with antennas up to 8 ft. In length (Powerbase Antenna)

Compatibility:

• Compatible with all leading 1-1/4″ threaded VHF Antennas (8ft or less in length)

Required for installation (not included):

• 7/32” & 3/4” Drill Bits
• #2 Phillips Driver
• Marine Grade Sealant
• PTFE Lubricant
• 2x 1-1/4” Fender Washers and 10-24
• Nuts (If Through-Hole Mounting)
• 2-Position SPST Switch (with LED Backlight)
• PowerBase Antenna not included
