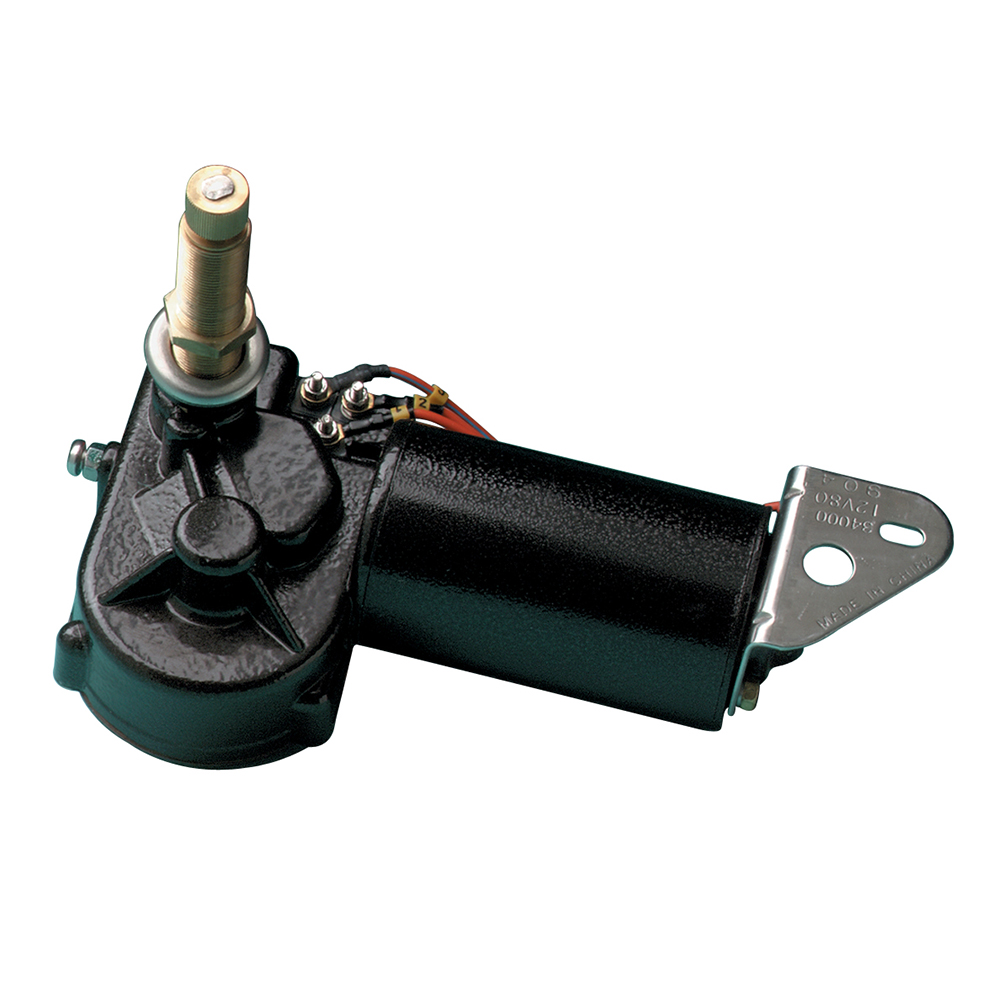

Wiper Motor, MRV, 12V, 3.5″ Shaft – 80°

The MRV Wiper Motor easily powers 22″ x 22″ deluxe arm/blade combinations, or a 20″ x 20″ premier arm/blade combination at sweep sets of 80 degree or less.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 45 degree, 60 degree, 80 degree or 110 degree
• 0.625″ diameter shaft (16 mm)
• Available in 3 shaft lengths: 1.5″, 2.5″ and 3.5″ (includes .5″ length of knurled arm fitting)
• Corrosion-resistant casing
• Heavy-duty motor with right angle drive
• Two-speed motor, can be operated as one speed
• Solid brass knurled drive nut with brass and stainless steel drive shaft
• Adjustable right or left self parking, coast to park
• Retail version includes 5 amp fuse and holder
• Stainless steel fasteners and mounting bracket
• Use with three-position switch (not included)
• Compact size – 7.625″ L x 4″ W x 2″ D
• Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
• Stall current: 11.5-13.0 amps
• No load current: 0.5-1.2 amps
