Description

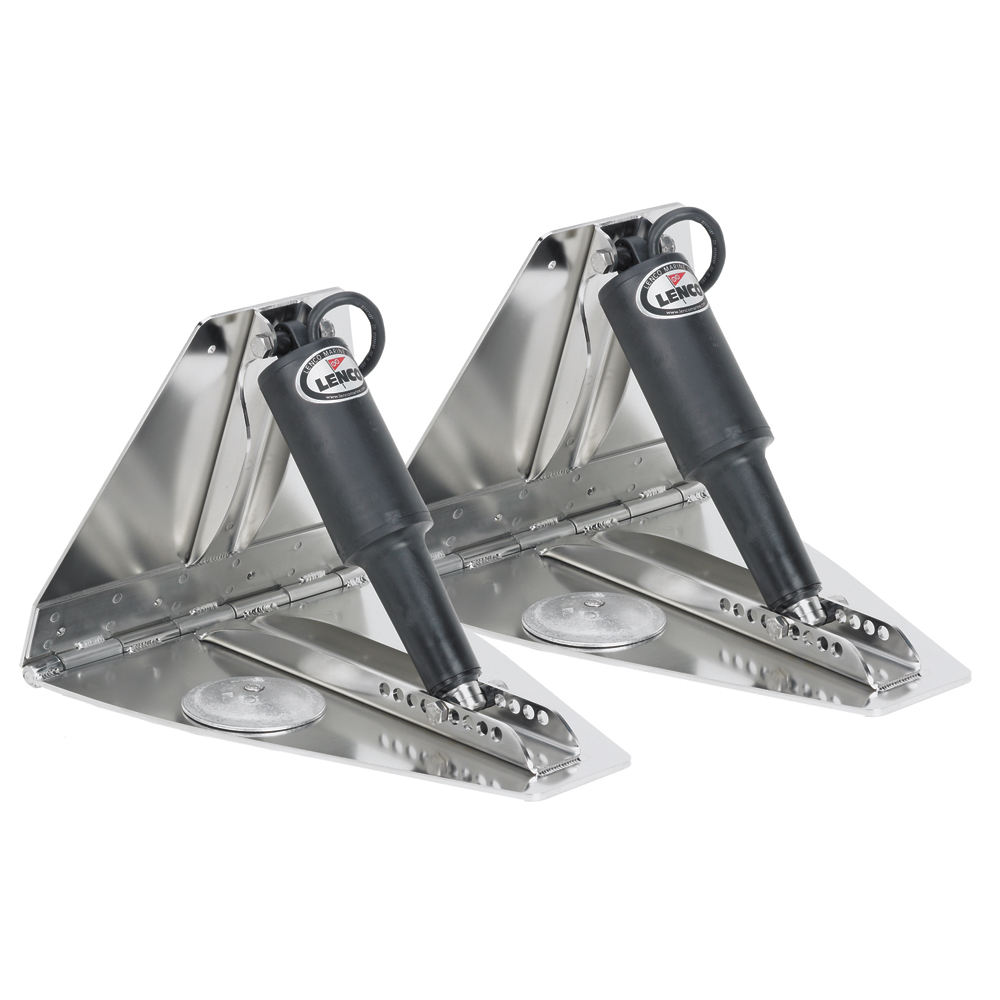

14″ x 12″ High Performance Trim Tab Kit w/o Switch Kit-12V – Single Actuator

Lenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.

Each kit is factory assembled with extreme duty actuators with 3/8″ SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75″ sacrificial anodes.

Kit Contents:

• 2 each of stainless steel trim tab planes
• 2 each of #15056-001 XD extreme duty actuators with 6′ lead & Deutsch plugs
• Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75″ sacrificial anodes.

The following to be supplied by customer:

• Boat mounting hardware supplied by customer
• Actuator extension harnesses (2 for single actuator application or 4 for dual) will be
  required. To order the lengths of your choice see the Lenco Accessories Section.

Specifications:

• Suggested Boat Length: 16′ to 32′
• Length of Tab: 14″
• Width of Tab: 12″
• Minimum Transom Height: 10.5″
• Blades: 7 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Switch Required: 10222-211D, 15069-001
  or 15070-001
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
