Digital Yacht Nomad 2 Portable AIS w/GV30

Digital Yacht Nomad 2 Portable AIS w/GV30

Nomad 2 Portable AIS with GV30

Nomad 2 is a portable AIS transponder from Digital Yacht. Designed for recreational boaters and professional mariners, it offers a full-function Class B AIS transponder with a wireless and USB interface built in for tablets and PCs—all in a portable, compact package.

It incorporates an innovative USB power solution, therefore allowing the Nomad to be powered from any standard USB source. This can include low-cost 3rd-party battery packs, a USB PC connection, or 12V USB adaptors/cigarette lighter adaptors. It ships with a compact combination of AIS and GPS antenna, which allows the main unit to be used below decks on all types of vessels – leisure, and commercial.

It addresses the needs of so many boaters who want a portable yet sophisticated navigation solution with AIS and GPS and the ability to interface with tablets, PCs, and smartphones. It appeals to charter skippers, professional mariners like delivery skippers and pilots, as well as boat owners who don’t want the hassle or cost of installing a dedicated transponder and like the concept of easy iPad and tablet navigation using their favorite charting apps with a detailed AIS overlay and real-time GPS positioning. As a full-function Class B transponder, it also sends the boat position to other AIS users.

Nomad 2 has a built-in wireless interface for outputting GPS position data and AIS. It’s designed for use with an iPad, tablet, phone, or PC in conjunction with any compatible charting app or program—Navionics, NavLINK, Weather 4D, AquaMap, Imray, SailGrib, and 100’s more.

The unit can also act as an AIS/GPS receiver only if MMSI and specific boat data are not available.

Configuration

Nomad 2 has a built-in web interface. The configuration of the transponder can be done through a computer, a tablet, or even a smartphone, and most importantly, no software is required.

You can configure the Nomad 2 through its simple web interface. Just open the web browser, enter the Nomad 2’s IP address, and users can configure the vessel details (MMSI number, boat name, etc.), network name, and password, and even merge the AIS’s WiFi to an existing WiFi network on board. So no complicated programming software or app is required.

You can even view the received NMEA data in the web browser for easy fault-finding. Finally, Nomad 2 supports TCP and UDP network protocols for maximum compatibility with apps.

Features:

  • The perfect AIS solution for charter users, rental boats, delivery skippers, pilots, commercial users, etc.
  • Full-function Class B transponder (send and receive AIS)
  • Supplied with a combination GPS-VHF antenna that has an industry standard 1” threaded mount – suitable for many 3rd party deck, rail, and pole mounts
  • Integrated wireless and USB interfaces – compatible with 100s AIS-ready charting apps
  • USB powered
  • Easy programming and control through a wireless web interface – no apps required
  • Silence transmissions via the web interface
  • Supports up to 7 connected devices
  • Creates its access point and also can join an existing wireless network if required

Specifications:

  • Weight: 1200 g
  • Dimensions: 245 × 165 × 100 mm

What’s inside the Box?

  • Nomad Class B Transponder
  • 3db Wifi Antenna
  • Integrated USB (Type A) Power Data Cable
  • GV30 Combination AIS/GPS Antenna With 5m Cable And Connectors
  • Instructions

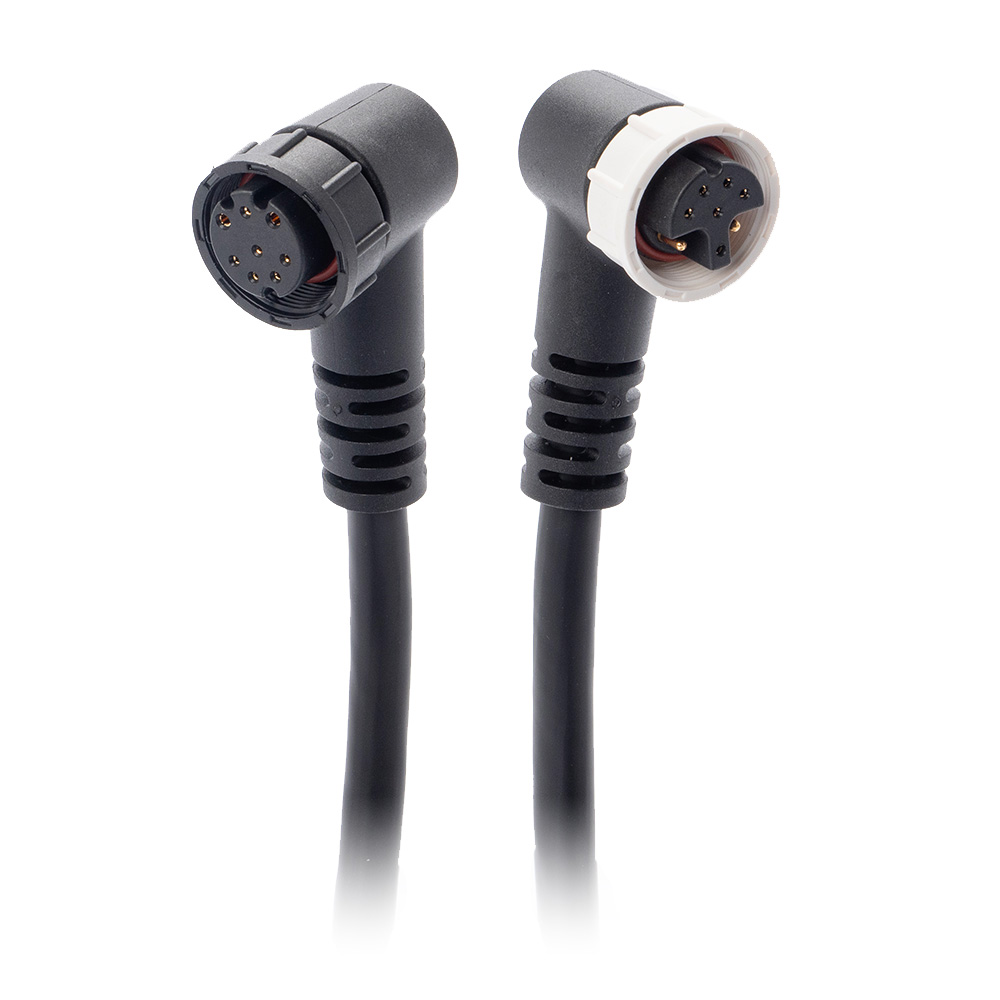

Raymarine 0.3M Daisy Chain Cable f/Alpha Displays

Raymarine 0.3M Daisy Chain Cable f/Alpha Displays

0.3M Daisy Chain Cable for Alpha Displays

Daisy chain up to four Alpha Performance Displays together to create the ultimate data display. Daisy chain cables attach seamlessly to the back of each display.

Features:

  • 0.3-meter Daisy Chain Cable
  • Suitable for both 7” and 9” Alpha Displays

Raymarine 1M Daisy Chain Cable f/Alpha Displays

Raymarine 1M Daisy Chain Cable f/Alpha Displays

1M Daisy Chain Cable for Alpha Displays

Daisy chain up to four Alpha Performance Displays together to create the ultimate data display. Daisy chain cables attach seamlessly to the back of each display.

Features:

  • 1-meter Daisy Chain Cable
  • Suitable for both 7” and 9” Alpha Displays

B&G V100-B Black Box VHF Radio w/Built-In AIS Transmitter & Receiver & External GP-500 GPS Antenna

B&G V100-B Black Box VHF Radio w/Built-In AIS Transmitter & Receiver & External GP-500 GPS Antenna

V100-B Black Box VHF Radio with Built-In AIS Transmitter & Receiver & External GP-500 GPS Antenna

Stay safer on the water with the B & G V100-B VHF marine radio featuring a built-in GPS and Class B AIS transceiver, which allows you to see and be seen by AIS-equipped vessels. Stay connected from anywhere on board with up to 8 handsets (4 wired and 4 wireless) and 4 external speakers.

Stay connected from anywhere on board with up to 8 handsets (4 wired and 4 wireless) and 4 external speakers.

The system is comprised of a VHF Radio Black box (NRS-2), a handset, and a speaker. Add additional speakers or wireless handsets with charging stations as you need, for complete freedom onboard, and meaning there is no need for a handheld VHF.

The radio systems replace the V90-B VHF and have been developed to allow wider integration possibilities through NMEA 2000® and 0183 while featuring improved user interfaces and design styles aligned to the new displays of B & G.

V100-B Features:

  • Integrated Class B AIS transmitter & receiver
  • Bundled with a dedicated GPS receiver, GPS-500 for AIS transmission.
  • Class D DSC-approved VHF radio
  • Integrated GPS receiver
  • Connect up to 4 wireless and 4 wired handsets
  • Add an optional loudhailer and up to 4 external speakers
  • NMEA 0183 and NMEA 2000® connectivity
  • 60-second audio rewind
  • Configurable external speakers with volume offsetting
  • Handset backlight settings can be grouped with NMEA 2000® backlight groups so MFDs and VHF Radios can have backlight controlled together
  • Track Buddy – track up to 5 “buddies” using their VHF MMSI

In the Box:

  • 000-15642-001 NRS-2 Black Box only
  • 000-15650-001 H100 Handset
  • 000-15651-001 SP100 – Speaker for Simrad and B & G Systems
  • 000-13613-001 GPS-500

See & Be Seen with Integrated AIS*

The V100-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat’s position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbors and waterways. AIS information can be viewed on the radio’s built-in screen or overlaid on your chart or radar screen through a compatible multifunction display.

*V-100 has a receiver only

Expandable with Additional Handsets & Speakers

V100 series modular VHF radios come with 1 wired handset and 1 speaker, but you can add up to 4 more B & G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio’s display and controls on a large, easy-to-read screen, viewable in all lights, with an intuitive user interface. Access all key functions with channel scan and favorites, an alphanumeric keypad, clear audio, handset station naming, and 60-second audio rewind.

Vesper Cortex M1- Full Class B SOTDMA SmartAIS Transponder w/Remote Vessel Monitoring – Only Works in North America

Vesper Cortex M1- Full Class B SOTDMA SmartAIS Transponder w/Remote Vessel Monitoring - Only Works in North America

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form. **

Click here to download form.

Cortex M1- Full Class B SOTDMA SmartAIS Transponder with Remote Vessel Monitoring – Only Works in North America

Full Class B SOTDMA with smartAIS send and receive and integrated no-loss splitter. Monitor and control onboard systems and keep alerted on board or ashore from your smartphone.

Features:

  • This Cortex model is made to function ONLY in North America
  • Add H1P portable handset for full VHF capability
  • Built-in Class B SOTDMA with no-loss antenna splitter
  • Built-in WiFi and Cellular connectivity on monitoring onboard and ashore
  • Low power consumption hub
  • 10Hz GPS antenna
  • Monitor up to 5 sensors connected directly
  • Network to NMEA2000 to monitor sensors remotely and receive Man Overboard alarms from other devices

The Intelligent Boat

  • SOTDMA smartAIS transponder with remote vessel monitoring and control

Smart & Connected

  • Predicts collisions with other vessels and knows when someone falls overboard
  • Knows when your anchor is dragging and will tell you when something is wrong, whether you’re onboard or ashore
  • Cortex is the brain of your boat

The smartAIS Advantage

  • smartAIS consumes very low power and continuously alerts even if your power intensive MFD or smartphone is switched off
  • smartAIS proactively alerts you of potential collisions, anchor drag and man overboard situations

Collision Prevention

  • smartAIS combines GPS, AIS and heading data with smart logic to proactively warns you of collision risks
  • Clearly see the highest risk vessels
  • When using a Cortex handset, smartphone, or tablet, make trial maneuvers to see a simulation of where and when your paths will cross

Anchor Watch

  • Sleep soundly or explore with abandon knowing that your boat is exactly where you anchored
  • By combining your position and heading, Cortex will determine if your anchor drags
  • When your boat moves outside your anchor swing radius the alarm will sound on Cortex handsets and your smartphone
  • Receive alerts while ashore via the Cortex Monitor App on your smartphone
  • Cortex will keep watch and alert you about changes in water depth, wind speed, or direction while you are anchored

Man Overboard (MOB)

  • When Cortex detects an AIS MOB activation it immediately sounds the alarm
  • Compatible with all AIS MOBs, you will see where the MOB was first activated along with continuous updates to its location, bearing, and range
  • Get clear information and take the best course
  • Label AIS MOB devices with crew names for easy identification
  • Pressing the dedicated MOB button activates a trackback mode on all handsets and marks the MOB on NMEA 2000 connected MFDs

Advanced SOTDMA Technology

  • SOTDMA is the latest AIS technology with 5W power output, making your boat visible over a longer distance
  • With faster and more frequent transmissions of your position to other vessels, you’ll be safer, especially at speeds of over 14 knots

Connect via WiFi

  • Receive alerts on your smartphone, tablet, or smartwatch anywhere onboard
  • Connect up to 10 WiFi devices to receive and manage alarms, view AIS information and instrument data
  • Integrate Cortex to your NMEA 2000 network and use your mobile devices to view information your instruments provide

10Hz GPS Update Rate

  • With 10Hz GPS updates, your vessel position is more accurately plotted
  • When you connect other devices to your Cortex GPS using NMEA 2000 or NMEA 0183, all onboard equipment benefits from the superfast GPS

Integrated No-Loss Splitter

  • The integrated no-loss splitter allows you to share a single antenna with another VHF and delivers optimum performance for both your VHF and AIS

Low Power Consumption

  • With low input power, you can keep the Cortex always on, so you are always visible and always watching
  • Receive alerts without the need for power-hungry MFDs

Cortex Will Get Smarter.

  • New features and capabilities are downloaded automatically to the Cortex Onboard app for easy updates to Cortex via WiFi whenever convenient

Remote vessel monitoring and control

  • See your boat’s status, receive alerts, and control devices

Easy setup, no fee

  • With built-in sensors, you can see twice-daily updates of your boat’s location, battery level, true heading, ambient temperature, and barometric pressure
  • Connect to your NMEA network and monitor more – wind speed direction and water depth
  • As long as your smartphone and boat have cellular access, you can know your boat is safe and secure
  • No subscription, no hassle

Real-time monitoring and control

  • Subscribe to a Cortex Monitor Plan to receive alerts, see real-time information about your boat, and remotely control devices like lighting, air conditioning, refrigeration, or ice-makers
  • Whether you’ve left your boat, at anchor, or at the marina, know exactly where it is and what’s happening onboard

The world’s most advanced VHF radio

  • Upgrade to the future of VHF
  • The Cortex is VHF-ready, simply add wireless H1P handsets to enjoy the power of VHF and AIS combined

em-trak B954 Class B AIS Transceiver – 5W SOTDMA w/WiFi, Bluetooth, & VHF Antenna Splitter

em-trak B954 Class B AIS Transceiver - 5W SOTDMA w/WiFi, Bluetooth, & VHF Antenna Splitter

B954 Class B AIS Transceiver – 5W SOTDMA with WiFi, Bluetooth, & VHF Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form.**

Click here to download form.

The B954 is the most feature-rich high transmit power (5W SOTDMA) AIS transceiver in the B900 range. The B954 combines Wi-Fi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC or wearable, with an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance. Like all B900 transceivers, it also includes an integrated next-generation GPS receiver and antenna and is designed for em-trak’s unique FLEXI-FIT® bracket system to make installation as easy as possible.

Lightweight and completely weatherproof, the B954 delivers the very best AIS receive and transmit performance with increased range and transmission priority. Your transceiver will also work with our CONNECT-AIS mobile phone app to make programming, configuration, and transceiver health monitoring simple and convenient.

Features:

  • Certified AIS Class B – 5W SOTDMA
  • Integrated WiFi and Bluetooth
  • Integrated VHF antenna splitter
  • Global certification – USCG / FCC / Canada / Europe
  • SRT-AIS™ Transceiver Engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient, and secure installation
  • Internal high-performance GPS receiver and antenna (external antenna optional)
  • Water, pressure spray, and damp proof (IPx6, IPx7 certified)
  • Protected from vibration, shock, and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
  • NMEA 0183 & NMEA 2000
  • Automated health and performance monitoring
  • Silent mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection
  • Fail-safe VHF radio operation

Physical & Environmental Specifications:

  • Size (H x W x D): 150 x 115 x 45mm
  • Weight: 425kg
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx7

Electrical Specifications:

  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V – 31.2V DC
  • Average current (at 12V): 280mA
  • Average current (at 12V) (wireless off): 245mA
  • Peak current: 2.5A
  • Average power consumption (at 12V): 3.4W
  • Average power consumption (at 12V) (wireless off): 2.9W
  • Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

  • VHF antenna: SO-239
  • VHF radio: SO-239
  • GNSS: TNC
  • Power: 12-way circular multipole
  • NMEA 2000: 5-way Micro-C connector
  • USB: USB Micro-B

Data Interfaces:

  • NMEA 0183: 2 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • USB: PC virtual com port for NMEA 0183 data
  • Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
  • Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

  • AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: Internal or optional external antenna
  • Time to first fix from the cold start: 26s

VHF Transceiver:

  • VDL access scheme: SOTDMA
  • Operating frequency: 156.025MHz – 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 2 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 5W (+37dBm)

User Interface:

  • Indicators: Power, transmit timeout, error, silent mode

In the Box:

  • 1 x AIS transceiver
  • 1 x Power and data cable (2M)
  • 1 x VHF radio accessory cable
  • 1 x FLEXI-FIT™ mounting bracket
  • Complete with screws & optional fixing tape

em-trak B200 Class B AIS Transceiver – 5W SOTDMA w/Battery Backup

em-trak B200 Class B AIS Transceiver - 5W SOTDMA w/Battery Backup

B200 Class B AIS Transceiver – 5W SOTDMA with Battery Backup

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form.**

Click here to download form.

The em-trak B200 is a high transmit power (5W) priority AIS Class B transceiver specifically designed for serious ocean sailors, offering enhanced safety through maximum range and transmission priority.

The high-powered, advanced AIS engine provides the reliability you can depend on and the very best AIS performance in its class. Completely water and weatherproof (IPx6 & IPx7 certified), and ruggedized to withstand shock and vibration, the B200 has been extensively tested in the most extreme marine environments and will provide years of maintenance-free operation. The dual NMEA2000 & 0183, coupled with serial ports, USB, Wi-Fi, and Bluetooth also make connecting to all your tablets, PCs, display, and navigation devices easy and simple.

Peace of mind is further enhanced with an internal battery that ensures continuous operation for up to 120 hours in the event of total power loss. The B200 also supports silent mode, where transmissions are switched off, but receiving continues, and can be enabled through the integrated switch.

Features:

  • Certified AIS Class B – 5W SOTDMA
  • Ruggedized and impervious to extreme environments – water (IPx6, IPx7), damp, shock, vibration, temperatures
  • Internal battery back-up for up to 120hrs operation – charge is automatically maintained by primary vessel power and automatically switches to the battery if lost
  • Wi-Fi & Bluetooth wireless connectivity
  • High performance latest generation GPS
  • NMEA0183 & NMEA2000
  • Low power consumption
  • Anti-tamper protection
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection

Physical & Environmental Specifications:

  • Size (w x h x d): 170 x 140 x 69mm
  • Weight: 695g
  • Operating temperature: –25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection – IPx6 and IPx7

Electrical Specifications:

  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V – 31.2V DC
  • Average current (at 12V): 240mA (1.6A when battery charging)
  • Peak current: 3.85A
  • Average power consumption (at 12V): 2.9W (19.2W when battery charging)
  • Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port
  • Battery Capacity: 4600mAh
  • Battery Type: 3.7V Li-Ion rechargeable
  • Battery life (default operating conditions): 48 hours

Connectors:

  • VHF antenna: SO-239
  • GNSS: TNC
  • Power: 2-way circular multipole
  • NMEA 0183/silent mode: 12-way circular multipole
  • NMEA 2000: 5-way Micro-C connector
  • USB: USB Micro-B

Data Interfaces:

  • NMEA 0183: 2 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • USB: PC virtual com port for NMEA 0183 data
  • Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
  • Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

  • AIS standards: IEC 62287-2 Ed. 2.  ITU-R M.1371.5
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0.  IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0

GNSS:

  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: External only
  • Time to first fix from the cold start: 26s

VHF Transceiver:

  • VDL access scheme: SOTDMA
  • Operating frequency: 156.025MHz – 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 2 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 5W (+37dBm)

User Interface:

  • Buttons: Integrated silent mode
  • Indicators: Power, transmit timeout, error, silent mode

GNSS antenna

  • Size: 85 x 70mm
  • Weight: 470g
  • Ingress Protection: IPx6 and IPx7
  • Mounting: 1 inch 14 TPI pole mount required
  • GNSS systems supported: GPS, GLONASS, Galileo, BeiDou

In the Box:

  • 1 x AIS transceiver
  • 2 x Anti-tamper locking plates
  • 1 x Power cable (2M)
  • 1 x Fixing pack
  • 1 x Anti-tamper bracket
  • 1 x Mounting template

em-trak SART100 AIS Search & Rescue Transponder

em-trak SART100 AIS Search & Rescue Transponder

SART100 AIS Search & Rescue Transponder

Be ready for anything. Engineered for reliability the em-trak SART100 is an IMO-SOLAS-certified AIS search and rescue transponder. This market-leading search and rescue transponder can be stored for years, and when needed, can be instantly activated to transmit an emergency transmission to all AIS-equipped vessels including coastguard and aircraft, allowing them to pinpoint your exact location.

The em-trak SART is ruggedized (IPx6, IPx7, and IPx8), comes as a complete kit, and can be stored away for many years ready for instant activation in the event of an emergency, giving you total peace of mind.

Features:

  • IMO Solas Certified and Approved AIS SART
  • 5 years minimum maintenance-free continuous standby
  • Easy to use in an emergency
  • Ruggedized, weather and waterproof to IP66, IP67, and IP68
  • Complete kit, inclusive of the quick-release mounting bracket and grab bag

Physical & Environmental Specifications:

  • Size (h x w): 384 x 68 mm
  • Weight: 360g
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx8

Electrical Specifications:

  • Battery capacity: 3000mAh
  • Battery type: 6V Lithium primary cell
  • Battery life (default operating conditions): 96hours

Standards Compliance:

  • AIS standards: IEC 61097-14
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
  • Environmental standards: IEC 60945 Ed. 4
  • GNSS performance standards: IEC 61108-1 Ed 2.0

GNSS:

  • Systems supported: GPS
  • Channels: 48
  • Internal/external antenna: Internal only
  • Time to first fix from the cold start: 35s

VHF Transceiver:

  • VDL access scheme: Modified SOTDMA
  • Operating frequency: 161.975MHz and 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 1 x transmitter
  • AIS transmitter power: 1W (30dBm radiated)

User Interface:

  • Buttons: Activation and test
  • Indicators: Status indicator

In the Box:

  • 1 x AIS SART
  • 1 x Lanyard
  • 1 x Telescopic Mounting Pole
  • 1 x Mounting Bracket and Fixings
  • 1 x Kit Bag

em-trak B924 Class B AIS Transceiver w/WiFi, Bluetooth & VHF Antenna Splitter – 2W CSTDMA

em-trak B924 Class B AIS Transceiver w/WiFi, Bluetooth & VHF Antenna Splitter - 2W CSTDMA

B924 Class B AIS Transceiver with WiFi, Bluetooth & VHF Antenna Splitter – 2W CSTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form.**

Click here to download form.

The most feature-rich 2W CSTDMA AIS transceiver in the B900 range. The B924 includes WiFi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC, or wearable, with an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance. Like all B900 transceivers, it also includes an integrated next-generation GPS receiver and antenna and is designed for em-trak’s unique FLEXI-FIT® bracket system to make installation as easy as possible.

Exceptionally lightweight and completely weatherproof, the B924 delivers the very best (2W) AIS receive and transmit performance, so you see all AIS information and targets, even at maximum range. Your transceiver will also work with our CONNECT-AIS mobile phone app to make programming, configuration, and transceiver health monitoring simple and convenient.

Features:

  • Certified AIS Class B – 2W CSTDMA
  • Integrated WiFi and Bluetooth
  • Integrated VHF antenna splitter
  • Global certification – USCG / FCC / Canada / Europe
  • SRT-AIS™ Transceiver Engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient, and secure installation
  • Internal high-performance GPS receiver and antenna (external antenna optional)
  • Water, pressure spray, and damp proof (IPx6, IPx7 certified)
  • Protected from vibration, shock, and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
  • NMEA 0183 & NMEA 2000
  • Automated health and performance monitoring
  • Silent mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection

Physical & Environmental Specifications:

  • Size (H x W x D): 150 x 115 x 45mm
  • Weight: 425kg
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx7

Electrical Specifications:

  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V – 31.2V DC
  • Average current (at 12V): 280mA
  • Average current (at 12V) (wireless off): 245mA
  • Peak current: 2A
  • Average power consumption (at 12V): 3.4W
  • Average power consumption (at 12V) (wireless off): 2.9W
  • Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

  • VHF antenna: SO-239
  • VHF radio: SO-239
  • GNSS: TNC
  • Power: 12-way circular multipole
  • NMEA 2000: 5-way Micro-C connector
  • USB: USB Micro-B

Data Interfaces:

  • NMEA 0183: 2 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • USB: PC virtual com port for NMEA 0183 data
  • WiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
  • Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

  • AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: Internal or optional external antenna
  • Time to first fix from the cold start: 26s

VHF Transceiver:

  • VDL access scheme: CSTDMA
  • Operating frequency: 156.025MHz – 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 2 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 2W (+33dBm)

User Interface:

  • Indicators: Power, transmit timeout, error, silent mode

In the Box:

  • 1 x AIS transceiver
  • 1 x Power and data cable (2M)
  • 1 x VHF radio accessory cable
  • 1 x FLEXI-FIT™ mounting bracket
  • Complete with screws & optional fixing tape

em-trak B951 Class B AIS Transceiver – 5W SOTDMA

em-trak B951 Class B AIS Transceiver - 5W SOTDMA

B951 Class B AIS Transceiver – 5W SOTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form.**

Click here to download form.

The B951 is a high-power (5W SOTDMA) Class B transceiver, delivering advanced performance and ultimate reliability through em-trak’s next-gen technology. Small and durable, this trusted transceiver processes all AIS transmissions in real-time, with increased range and transmission priority so you always have the complete picture and the time to respond, even in the busiest waters.

em-trak’s flexible, intelligent connectivity means the B951 can be paired to any chart-plotter and its next-gen GPS receiver and the antenna are already integrated inside the device to provide best-in-class, ultra-low power consumption, and performance. em-trak’s unique FLEXI-FIT® bracket system completes the package and ensures easy installation.

Features:

  • Certified AIS Class B – 5W SOTDMA
  • Global certification – USCG / FCC / Canada / Europe
  • SRT-AIS™ Transceiver Engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient, and secure installation
  • Internal high-performance GPS receiver and antenna (external antenna optional)
  • Water, pressure spray, and damp proof (IPx6, IPx7 certified)
  • Protected from vibration, shock, and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • NMEA 0183 & NMEA 2000
  • Automated health and performance monitoring
  • Silent mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection

Physical & Environmental Specifications:

  • Size (H x W x D): 150 x 115 x 45mm
  • Weight: 375kg
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx7

Electrical Specifications:

  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V – 31.2V DC
  • Average current (at 12V): 135mA
  • Peak current: 2.5A
  • Average power consumption (at 12V): 1.6W
  • Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

  • VHF antenna: SO-239
  • GNSS: TNC
  • Power: 12-way circular multipole
  • NMEA 2000: 5-way Micro-C connector
  • USB: USB Micro-B

Data Interfaces:

  • NMEA 0183: 2 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

  • AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: Internal or optional external antenna
  • Time to first fix from the cold start: 26s

VHF Transceiver:

  • VDL access scheme: SOTDMA
  • Operating frequency: 156.025MHz – 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 2 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 5W (+37dBm)

User Interface:

  • Indicators: Power, transmit timeout, error, silent mode

In the Box:

  • 1 x AIS transceiver
  • 1 x Power and data cable (2M)
  • 1 x FLEXI-FIT™ mounting bracket
  • Complete with screws & optional fixing tape
